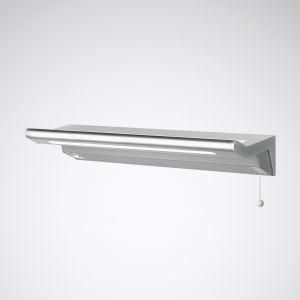

Trilux 6891340 Sanesca W3 S2/R 5000 830 ET 03 LED wall light

In stock
SKU: 851049
€1,015.42
Into a basketIn the basketGo

Overview

LED wall light with indirect-direct light distribution. With night light function, diffuse light. With 230 V, 16 A safety socket and pull switch. Pull switch switches lower, direct light output. For direct wall mounting. With direct-indirect light distribution. Glare rating according to UGR classification (EN 12464-1) < 22. With translucent PMMA cover panel. Harmonious lighting effect due to evenly illuminated light output. With 3 LED systems. Rated luminous flux 4400 lm, rated power 31.00 W, luminous efficacy of the luminaire 141 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 70,000 h, average rated service life L85 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of aluminum, upper cover made of sheet steel. Surface coated silver gray (RAL 9006). Dimensions (L x W): 190 mm x 700 mm, luminaire height 96 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 5.9 kg. With three electronic operating devices, switchable. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

Property Value
Max. System power: 31 W
Rated luminous flux according to IEC 62722-2-1: 4400 lm
Suitable for number of lamps: 1
Length: 190 mm
Width: 700 mm
Height/depth: 96 mm
Protection rating (IP): IP20
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing color: Silver
Housing material: Aluminum
Color temperature: 3000 K
Impact resistance: IK06
Color rendering index CRI: 80-89
Suitable for ceiling mounting: no
Suitable for wall mounting: yes
Energy efficiency class of the permanently installed light source: other
Voltage type: AC
With motion detector: no
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -20 to 25 °C
Socket: other
Connection type: plug-in terminal
With operating device: yes
Light distributor: diffuser lens/optics/panel
Without dimming function: yes
Light emission: direct/indirect
Light distribution: asymmetrical
With Light sensor: no
Operating device: electronic transformer
Suitable for built-in installation: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for pendulum suspension: no
Suitable for surface mounting: no
Suitable for emergency lighting: no
Design of the grid: without
Covering of the lamp with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
LineSwitch dimming: no
Potentiometer dimming (integrated in the device): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming dependent on operating device: no
Rated service life L70/B50 at 25 °C: 70000 h
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Luminaire luminous efficacy: 142 lm/W
Power factor: 0.95
Number of poles: 3

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABSanesca W3 S2/R 5000 830 ET 03
ManufacturerTrilux
HAN6891340
GTIN4018242374496
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Execution of the gridWithout
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-14400lm
Rated ambient temperature according to IEC62722-2-1-20 to 25 °C
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1No
Width700 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorSilver
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth96 mm
Power factor0.95
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy142lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorDiffuser lens/optics/panel
Light distributionAsymmetrical
Length190 mm
Max. system performance31 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles3
Impact resistanceIK06
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Housing materialAluminum
