Trilux 6927040 Skeo Q W1 D RB9L/200 730 1G1P ET LED wall light

Trilux 6927040 Skeo Q W1 D RB9L/200 730 1G1P ET LED wall light

In stock

SKU: 851748

Price on request

€246.32

€0

Overview

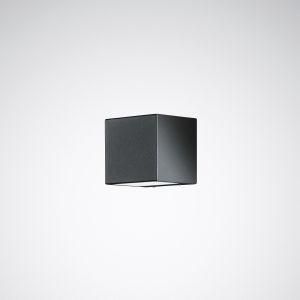

Cubic, decorative LED ceiling light with protection class IP65. Cover panel made of hardened, satin-finished glass. With a light emission opening. Can also be used holistically inside buildings. Surface-mounted light for wall mounting. The light is attached using a mounting plate made of cast aluminum. Mirror optics made of highly efficient aluminum. With direct light distribution. With rotationally symmetrical, wide light distribution. Rated luminous flux 200 lm, rated power 8.00 W, luminaire luminous efficacy 25 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. Luminaire body made of die-cast aluminum. Luminaire body anodized, primed and powder-coated. Color anthracite, similar to DB 703. (DB 703). Dimensions (L x W): 100 mm x 100 mm, lamp height 100 mm. On request, the lamp body can be made in the following colors at no extra cost: Black textured (Akzo Nobel 8118669, similar to RAL 9005), white textured (Akzo Nobel 8158870, similar to RAL 9016), gray textured (Akzo Nobel 8129595, similar to RAL 9006). Other color variants according to RAL or DB color code are available on request for an additional charge. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK06. Weight: 0.8 kg. With electronic control gear, switchable. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

Property	Value
Max. System power:	8 W
Rated luminous flux according to IEC 62722-2-1:	200 lm
Suitable for number of lamps:	1
Length:	100 mm
Width:	100 mm
Height/depth:	100 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	anthracite
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK06
Color rendering index CRI:	70-79
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Energy efficiency class of the built-in light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Socket:	other
Connection type:	Plug-in terminal
With control gear:	yes
Cover material:	opal glass
Light distributor:	Focus lens
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	25 lm/W
Power factor:	0.9
Type of Wiring:	Termination
Number of poles:	3

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABSkeo Q W1 D RB9L/200 730 1G1P ET

Manufacturer

HAN6927040

GTIN4018242379545

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-1200lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width100 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI70-79

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth100 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy25lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorFocus lens

Light distributionSymmetrical

Length100 mm

Max. system performance8W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK06

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass opal

Housing materialAluminum
