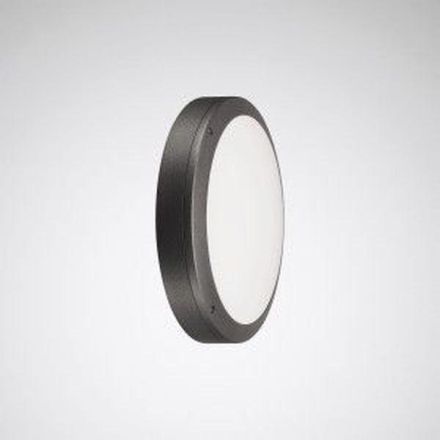

Trilux 7112951 Skeo Circ MultiLC WD2 1G1Y ETDD LED wall / ceiling light

Trilux 7112951 Skeo Circ MultiLC WD2 1G1Y ETDD LED wall / ceiling light

In stock

SKU: 852910

Price on request

€406.43

€0

Overview

Round, decorative LED surface-mounted luminaire for wall and ceiling mounting with protection class IP65. Thanks to its optical and technical design features, the wall luminaire's design language harmonizes with other luminaires that can be used in the project. Can also be used holistically inside buildings. Surface-mounted luminaires for ceiling and wall mounting. With Lambertian luminous intensity distribution. LED system with adjustable luminaire luminous flux and adjustable light color via DIP switch. The LED system forms a firmly connected unit with the luminaire cover and can be replaced. Rated luminous flux 2050 lm / 2100 lm, connected load: 20.00 W, selectable color temperature: 3000 / 4000 K, general color rendering index (CRI) Ra > 85. Color location tolerance (initial MacAdam) 4 SDCM. Average rated service life L80 (tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Cover made of highly impact-resistant PMMA, opal. Color anthracite, similar to DB703 with metallic effect, highly weather-resistant, powder-coated. (DB 703). Luminaire diameter 350 mm, luminaire height 83 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, protection type lamp compartment: IP65, shock resistance level according to IEC 62262: IK10. Weight: 3.1 kg. With 5-pin connection terminal up to 2.5 mm2 for mains connection and mains forwarding With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire is suitable for operation on a 230V direct current network (DC). The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The LED system with operating device is suitable for operation on direct current networks. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

Property	Value
Max. System power:	20 W
Rated luminous flux according to IEC 62722-2-1:	2050 lm
Suitable for number of lamps:	1
Height/depth:	83 mm
Protection rating (IP):	other
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	anthracite
Housing material:	Aluminum
Impact resistance:	IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	350 mm
Energy efficiency class of the built-in light source:	other
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	opal plastic
Light distributor:	diffuser lens/optics/panel
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	no
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for Surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	103 lm/W
Power factor:	0.95
Type of wiring:	Termination
Number of poles:	5

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABSkeo Circ MultiLC WD2 1G1Y ETDD

Manufacturer

HAN7112951

GTIN4018242400720

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleWide beam 41-80°

Outer diameter350 mm

Rated luminous flux according to IEC 62722-2-12050lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth83 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy103lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance20W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK10

IP protection)Other

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialPlastic opal

Housing materialAluminum
