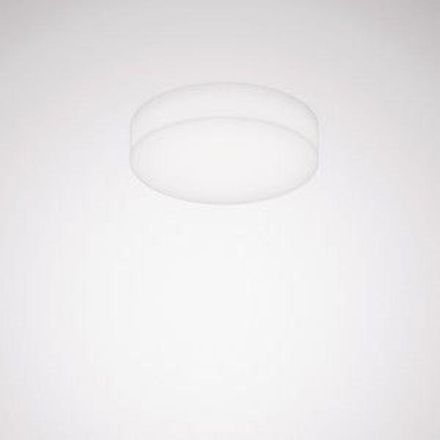

Trilux 7133040 Solegra WD1 OTA 2600 840 ET LED wall / ceiling light, white

In stock
SKU: 852921
€624.02
Into a basketIn the basketGo

Overview

Round LED wall and ceiling light in a straight, cylindrical design. The surface of the cover can be customized using an optional, colored profile frame (ZP). For ceiling and wall mounting. Suspended mounting possible using optional accessories. The cover is attached to the lamp body using an easy-to-use bayonet lock technology with anti-twist protection. With a cylindrical cover made of translucent PMMA. Increased lighting comfort through decorative ceiling illumination. Harmonious lighting effect through evenly illuminated light output. Rated luminous flux 2600 lm, rated power 19.00 W, luminous efficacy of the lamp 136 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Diameter of the cover Ø 400 mm, luminaire height 121 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.0 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property Value
Max. System power: 19 W
Rated luminous flux according to IEC 62722-2-1: 2600 lm
Suitable for number of lamps: 1
Height/depth: 121 mm
Protection rating (IP): IP20
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 230 V
Housing color: white
Housing material: other
Color temperature: 4000 K
Impact resistance: IK06
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Suitable for wall mounting: yes
Outer diameter: 400 mm
Energy efficiency class of the built-in light source: other
Voltage type: AC
With motion detector: no
Beam angle: wide beam 41-80°
With light source: yes
Light source: LED replaceable
Rated ambient temperature according to IEC62722-2-1: 25 °C
Socket: other
Connection type: plug-in terminal
With operating device: yes
Cover material: transparent plastic
Light distributor: other
Without dimming function: yes
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: electronic transformer
Suitable for recessed mounting: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for pendulum suspension: yes
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Installation diameter: 400 mm
Design of the grid: without
Covering of the luminaire with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on the operating device: no
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Luminaire luminous efficacy: 137 lm/W
Power factor: 0.9
Type of Wiring: Termination
Number of poles: 3

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABSolegra WD1 OTA 2600 840 ET
ManufacturerTrilux
HAN7133040
GTIN4018242410811
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridWithout
Beam angleWide beam 41-80°
Outer diameter400 mm
Rated luminous flux according to IEC 62722-2-12600lm
Rated ambient temperature according to IEC62722-2-125°C
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation diameter400 mm
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth121 mm
Power factor0.9
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy137lm/W
LampsLED replaceable
Light emissionDirect
Light colorWhite
Light distributorOther
Light distributionSymmetrical
Max. system performance19 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage230V
Without dimming functionYes
Number of poles3
Impact resistanceIK06
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic transparent
Housing materialOther
Trilux 7133040 Solegra WD1 OTA 2600 840 ET LED wall / ceiling light, white
