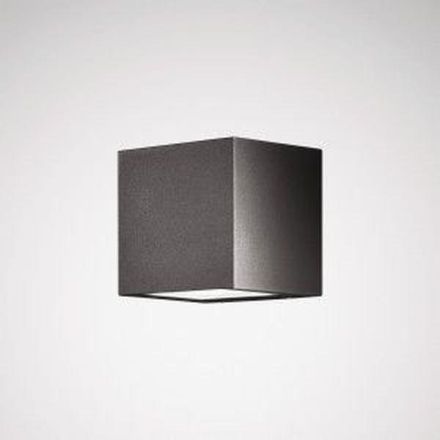

Trilux 7233151 Skeo Q-W2 GT AB19R-AB19R/1520-830 ETDD LED wall light

Trilux 7233151 Skeo Q-W2 GT AB19R-AB19R/1520-830 ETDD LED wall light

In stock

SKU: 853191

Price on request

€554.23

€0

Overview

Cubic, decorative LED ceiling light with protection class IP65. Cover plate made of hardened, highly transparent glass. With two light emission areas, direct-indirect beam. Can also be used holistically inside buildings. Surface-mounted luminaire for wall mounting. The luminaire is attached using a mounting plate made of cast aluminum. Mirror optics made of highly efficient aluminum. With two light emission openings. With direct-indirect beam light distribution. With asymmetrical wide beam light distribution. Rated luminous flux 1520 lm, rated power 32.00 W, luminaire luminous efficacy 47 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. Die-cast aluminum lamp body. Lamp body anodized, primed and powder-coated. Color anthracite, similar to DB 703. (DB 703). Dimensions (L x W): 150 mm x 150 mm, lamp height 150 mm. On request, the lamp body can be made in the following colors at no extra cost: Black textured (Akzo Nobel 8118669, similar to RAL 9005), White textured (Akzo Nobel 8158870, similar to RAL 9016), Gray textured (Akzo Nobel 8129595, similar to RAL 9006). Other color variants according to RAL or DB color code are available on request for an additional charge. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK08. Weight: 2.8 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire is suitable for operation on a 230V direct current network (DC). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire is suitable for operation on a 230V direct current network (DC). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

Property	Value
Max. System power:	32 W
Rated luminous flux according to IEC 62722-2-1:	1520 lm
Suitable for number of lamps:	1
Length:	150 mm
Width:	150 mm
Height/depth:	150 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	anthracite
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Energy efficiency class of the built-in light source:	other
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Transparent glass
Light distributor:	Focus lens
Without dimming function:	no
Light emission:	direct/indirect
Light distribution:	asymmetric
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	48 lm/W
Power factor:	0.95
Type of wiring:	Termination
Number of poles:	5

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABSkeo Q-W2 GT AB19R-AB19R/1520-830 ETDD

Manufacturer

HAN7233151

GTIN4018242430109

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-11520lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width150 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth150 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy48lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorFocus lens

Light distributionAsymmetrical

Length150 mm

Max. system performance32W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass transparent

Housing materialAluminum
