Trilux 7295600 7650Fi +LLWS IS 3360 MX Highbay L37 03 control unit

Trilux 7295600 7650Fi +LLWS IS 3360 MX Highbay L37 03 control unit

In stock

SKU: 856927

Price on request

€256.17

€0

Overview

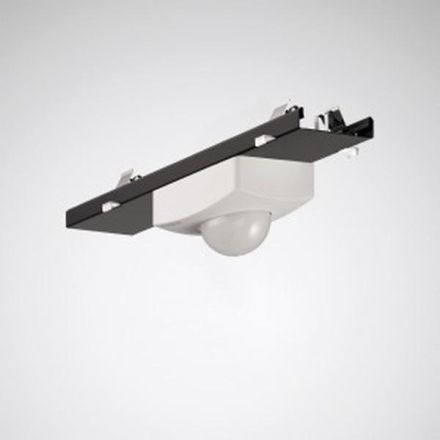

Device carrier made of sheet steel, coated in silver-grey. For combination with support profiles E-Line Fix 0765.... With integrated LiveLink WiFi sensor. LiveLink sensor unit with integrated PIR presence sensor for connection to a LiveLink control unit, for high-resolution presence detection. Connection and electrical supply via the DALI interface of the LiveLink control unit (occupies 3 DALI participants). 3 highly sensitive pyro sensors ensure the highest detection quality. A presence range of max. 18 m in radius enables the detection of the smallest movements, permissible installation height 3 m to 14 m. Dimensions (L x W x H): 368 mm x 95 mm x 106 mm. Complies with DIN 10500 and is suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. You can find further information about LiveLink on our website www.trilux.de.

Property	Value
With light source:	no
Operating device:	not required
Length:	368 mm
Width:	95 mm
Height/depth:	106 mm
Protection rating (IP):	IP20
Protection class:	without
Light distribution:	without
Light emission:	without
Suitable for emergency lighting:	no
Housing material:	steel
Housing colour:	silver
With operating device:	no
Reflector:	without
Socket:	without
Nominal voltage:	230 V
Light source:	other
Light color:	other
Voltage type:	AC/DC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Energy efficiency class of the permanently installed light source:	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Type of wiring:	suitable for through wiring
Number of poles:	5
Connection type:	Plug-in terminal

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HAB7650Fi +LLWS IS 3360 MX Highbay L37 03

Manufacturer

HAN7295600

GTIN4018242435302

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Operating deviceNot required

Width95 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionWithout

Suitable for emergency lightingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth106 mm

LampsOther

Light emissionWithout

Light colorOther

Light distributorWithout

Light distributionWithout

Length368 mm

With operating deviceNo

With light sourceNo

Nominal voltage230V

Without dimming functionYes

Number of poles5

ReflectorWithout

IP protection)IP20

Protection classWithout

Voltage typeAC/DC

Housing materialSteel
