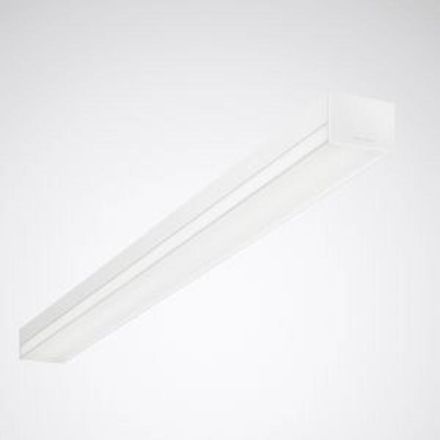

Trilux 7428562 SFlow-Act D2-L CDP-I 4300 ETDD8 01 LED wall/ceiling light, white

LED surface-mounted luminaire for single or strip lighting applications. Luminaire with Active equipment for controlling the light colour using a separate control unit. For wall or ceiling mounting indoors. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L2). For panel ceilings in module 100. With highly efficient CDP microprismatics. The microstructured PMMA prism surface of the optical system has an anti-glare effect, is non-yellowing and does not cloud. Prism structure on the inside, surface of the cover smooth on the room side. With symmetrical deep-wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all around. LED panels equipped with LEDs in the light colors warm white and daylight white. The following information on the luminaire luminous flux and the system connected load refer to the operation of this luminaire with dynamically adjustable light color (HCL) in the warm white light color operating mode (2700 K). Rated luminous flux 4000 lm, rated power 43.00 W, luminaire luminous efficacy 93 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra> 80. Color location tolerance (initial MacAdam) 3 SDCM. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1413 mm x 100 mm, luminaire height 70 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.6 kg. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8 capable control device. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
