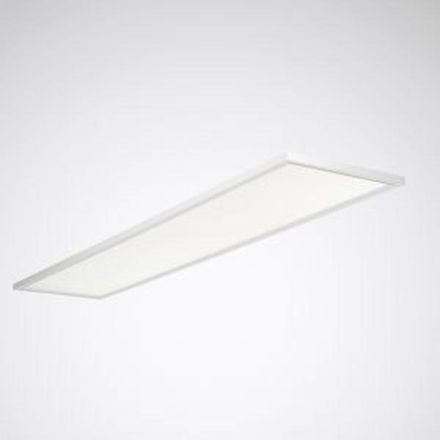

Trilux 7523962 ArimoFit Act M46 D-WW 42-8 ETDD8 LED recessed light, white

Rectangular LED recessed luminaire with translucent cover panel D-WW. Version M46 (300 mm x 1200 mm). Luminaire with Active equipment for controlling the light color using a separate control unit. The luminaire can optionally be equipped with an emergency lighting system for ceiling installation with an emergency lighting operating time of 3 hours. In emergency lighting mode, the luminaire luminous flux is 500 lm. Creation of a deeper spatial effect. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). For system ceilings with visible mounting rails. The luminaire body is flush with the ceiling system on the room side. The optical system consists of a translucent, non-yellowing PMMA cover with a high degree of transmission. The surface of the cover is smooth and free of visible, microprismatic structures. Wallwasher with asymmetrical light intensity distribution. Harmonious lighting effect thanks to evenly illuminated light emission. Individual design of the light emission surface (e.g. by printing) and other special solutions available on request. LED panels equipped with LEDs in the light colors warm white and daylight white. The following information on the luminaire luminous flux and the system connection power refer to the operation of this luminaire with dynamically adjustable light color (HCL) in the warm white light color operating mode (2700 K). Rated power 40.00 W, rated power 40.00 W, luminaire luminous efficacy 105 lm/W. The light color can be adjusted in a range between warm white and daylight white depending on a separate control, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 100,000 h, average rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum profile. Frame powder-coated white (RAL 9016). Luminaire dimensions (L x W x H): 1196 mm, 296 mm, 22 mm. The narrow flank profile is flush with the support rail. The luminaire frame is profiled in 3 dimensions to create a depth effect in the ceiling. Luminaire can be covered with insulation material at ta 25 ° C, ta35 ° C can also be used without insulation material. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, protection type on the room side: IP40, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 ° C. Weight: 3.6 kg. Reverse polarity protected quick connection with mains forwarding up to Ø 2.5 mm2. Connection of the ballast to the luminaire using a plug connection (plug and play). The packaging concept of the luminaire enables the operating device to be removed separately for pre-assembly, the other components of the luminaire remain protected until final assembly. With external, electronic operating device for switching, dimming and controlling the light color using a DALI Device Type 8 capable control device. Operating device in accordance with DALI-2 standard (EN 62386). The operating device is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Operating device is idle-proof and protected against incorrect connection, short circuit, overload and overtemperature. Output ripple of the operating device 4% for effective control of the LED system and flicker-free light. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires which are coordinated in appearance. The variety of applications of the product range is further underlined by variants in the area of luminous flux packages, light distribution curves and protection classes. On request, the basic range can be expanded to include
