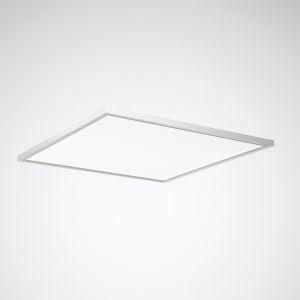

Trilux 7528651 ArimoFit M73 PW19 42-830 ETDD LED recessed luminaire, white

Square LED recessed light with microprismatic cover PW. Version M73 (600 mm x 600 mm). The light can optionally be equipped with an emergency lighting system for ceiling installation with an emergency lighting operating time of 3 hours. In emergency light mode, the luminaire luminous flux is 575 lm. Creation of a deeper spatial effect. For system ceilings with visible support rails. The luminaire body is flush with the ceiling system on the room side. The sky frame, which is optionally available as an accessory, creates a spatial atmospheric depth effect in the classic, flat modular ceiling, simulating the 3-dimensional contour of a skylight. The optical system consists of a highly efficient PMMA cover with microprismatics. PW (prismatic wide). The microstructured PMMA prism surface of the optical system has an anti-glare effect, is non-yellowing and does not cloud. With deep-wide beam light intensity distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all around. Harmonious lighting effect due to evenly illuminated light emission. Individual design of the light emission surface (e.g. by printing) and other special solutions available on request. Rated power 31.00 W, rated power 31.00 W, luminaire luminous efficacy 129 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 100,000 h, average rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum profile. Frame powder-coated white (RAL 9016). Luminaire dimensions (L x W x H): 596 mm, 596 mm, 22 mm. The narrow flank profile is flush with the support rail. The luminaire frame is profiled in 3 dimensions to create a depth effect in the ceiling. Luminaire can be covered with insulation material at ta 25 ° C, ta35 ° C can also be used without insulation material. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20, protection type on the room side: IP40, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 ° C. Weight: 3.4 kg. Reverse polarity protected quick connection with mains forwarding up to Ø 2.5 mm2. Connection of the ballast to the luminaire using a plug connection (plug and play). The packaging concept of the luminaire enables the operating device to be removed separately for pre-assembly, the other components of the luminaire remain protected until final assembly. With external operating device, digitally dimmable (DALI). Operating device in accordance with DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The operating device is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Operating device is idle-proof and protected against incorrect connection, short circuit, overload and overtemperature. Output ripple of the operating device 4% for effective control of the LED system and flicker-free light. The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires that are coordinated in appearance. The variety of applications of the product range is further underlined by variants in the area of luminous flux packages, light distribution curves and protection classes. This can be specified on request.
