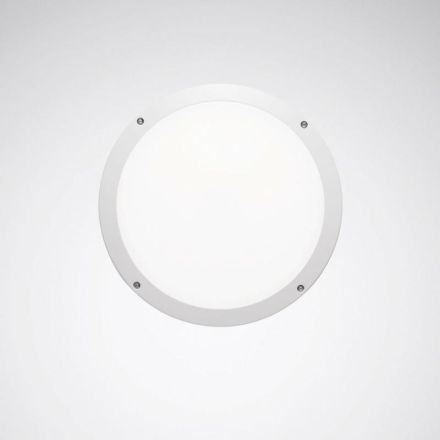

Trilux 7578040 Skeo Circ MultiLC WD1 1G1Y ET E3 LED wall/ceiling light

In stock
SKU: 864906
€269.58
Into a basketIn the basketGo

Overview

Round, decorative LED surface-mounted luminaire for wall and ceiling mounting with protection class IP65. Thanks to its optical and technical design features, the wall luminaire's design language harmonizes with other luminaires that can be used in the project. Can also be used holistically inside buildings. Surface-mounted luminaires for ceiling and wall mounting. With Lambertian luminous intensity distribution. LED system with adjustable luminaire luminous flux and adjustable light color via DIP switch. The LED system forms a firmly connected unit with the luminaire cover and can be replaced. Rated luminous flux 900 lm / 1350 lm, connected load: 9.00 W / 13.00 W, selectable color temperature: 3000 / 4000 K, general color rendering index (CRI) Ra > 85. Color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80 (tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Cover made of highly impact-resistant PMMA, opal. Surface coated in white. (RAL 9010). Luminaire diameter 265 mm, luminaire height 75 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, protection type lamp compartment: IP65, shock resistance level according to IEC 62262: IK10. Weight: 1.8 kg. With 3-pin connection terminal up to 2.5 mm2 for mains connection and mains forwarding. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

Property Value
Max. System power: 9 W
Rated luminous flux according to IEC 62722-2-1: 900 lm
Suitable for number of lamps: 1
Height/depth: 75 mm
Protection rating (IP): IP65
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing material: Aluminum
Color temperature: 3000 K
Impact resistance: IK10
Color rendering index CRI: 80-89
Suitable for ceiling mounting: no
Suitable for wall mounting: yes
Outer diameter: 265 mm
Energy efficiency class of the built-in light source: other
Voltage type: AC
With motion detector: no
Beam angle: wide beam 41-80°
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: 25 °C
Socket: other
Connection type: plug-in terminal
With operating device: yes
Cover material: opal plastic
Light distributor: diffuser lens/optics/panel
Without dimming function: yes
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: electronic transformer
Suitable for built-in installation: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for pendulum suspension: no
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: without
Covering of the lamp with thermal insulation material possible: yes
Dimming DMX: no
Dimming DSI: no
With air slots: no
Dimming LineSwitch: no
Dimming Potentiometer (integrated in the device): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming phase control: no
Phase control dimming: no
Programmable dimming: no
RF dimming: no
Sine Wave Reduction dimming: no
Touch and Dim dimming: no
Zigbee dimming: no
Push button dimming: no
Dimming depending on the operating device: no
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Luminaire luminous efficacy: 100 lm/W
Power factor: 0.9
Type of wiring: Termination
Number of poles: 3

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABSkeo Circ MultiLC WD1 1G1Y ET E3
ManufacturerTrilux
HAN7578040
GTIN4018242561162
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridWithout
Beam angleWide beam 41-80°
Outer diameter265 mm
Rated luminous flux according to IEC 62722-2-1900lm
Rated ambient temperature according to IEC62722-2-125°C
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth75 mm
Power factor0.9
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy100lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Max. system performance9W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles3
Impact resistanceIK10
IP protection)IP65
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
