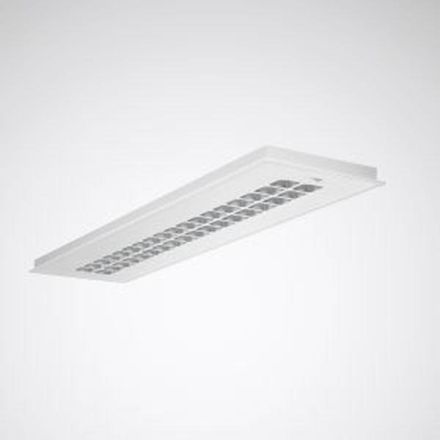

Trilux 7620151 Creavo M57 LW19-03 42-840 ETDD X4 01 LED recessed light, white

Rectangular LED recessed ceiling light with light elements made of lens systems and cubic anti-dazzle elements and high efficiency. Version M57 (312.5 mm x 1250 mm). For use in system ceilings with visible support rails and, in conjunction with accessories that must be ordered separately, also suitable for installation in system ceilings with concealed support rails and sawn ceiling openings (ArimoS MRX / Creavo ZBB/2). Installation in sawn openings using installation accessories requires a ceiling material thickness of > 36 mm. Further information and data on luminaire installation and fastening can be found in the installation instructions. The optical system with a precisely coordinated combination of LED lenses and anti-dazzle cubes ensures very high visual comfort with very high lighting performance. With symmetrical, deep-wide light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all round. With 36 light elements, rectangular design (2 x 18). With 36 light elements, rectangular design (2 x 18). Rated luminous flux 4200 lm, rated power 25.00 W, luminaire luminous efficacy 168 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 100,000 h, average rated service life L90(tq 25 °C) = 50,000 h. Luminaire body made of sheet steel, white powder-coated (RAL 9016). Anti-glare cubes silver-gray, with fine surface structure (RAL 7001). Dimensions (L x W): 1247 mm x 310 mm, luminaire height 50 mm. Weight: 8.1 kg. The anti-glare cubes can be made in other RAL colors on request. The color of the anti-glare cubes has no relevant influence on the lighting characteristics of the luminaire. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Luminaires equipped with Linect® luminaire connection system. With electronic control gear, digitally dimmable (DALI). Control gear is idle-proof and protected against incorrect connection, short circuit, overload and overtemperature. The control gear is replaceable. Output ripple of the control gear 4% for effective control of the LED system and flicker-free light. The touch DIM function enables the luminaire to be switched and dimmed using a button via the DALI conductor pair. The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. With integrated LiveLink Sensor IR Micro for connection to a LiveLink control unit for daylight-dependent control and presence detection. Connection and electrical supply via the DALI interface of the LiveLink control unit. Occupies 2 DALI participants. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the follow-up time to the use of the room. Temperature range -25 °C - +55 °C. Integrated pyro sensor for the highest detection quality with 168 detection zones. A presence area of 16 m2 enables the detection of the smallest movements. Square detection, presence detection squares max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended mounting height of 2.8 m, permissible mounting height 2.5 m to 4 m. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires that are coordinated in terms of appearance. Project-specific versions with varying luminaire features are available on request.
