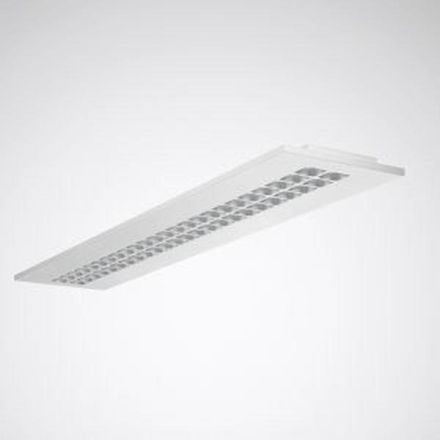

Trilux 7622651 Creavo M59-TS LW19-03 53-840 ETDD X7 01 LED recessed light, white

Rectangular LED ceiling insert luminaire with light elements made of lens systems and cubic anti-dazzle elements and high efficiency. Version M59 (312.5 mm x 1550 mm). Luminaire with Bluetooth low energy transmitter module (beacon) for compatible systems. The integrated beacon box is the basis for using the location-based services offered by TRILUX. The service enables the location and positioning of objects and people with a suitable smartphone in order to, for example, automatically provide location-related information. The luminaire is specifically designed for insertion in system ceilings with visible support rails. Further information and data on luminaire installation and fastening can be found in the installation instructions. The optical system with a precisely coordinated combination of LED lenses and anti-dazzle cubes ensures very high visual comfort with very high lighting performance. With symmetrical deep-wide beam light intensity distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all round. With 48 light elements, rectangular (2 x 24). With 48 light elements, rectangular (2 x 24). Rated luminous flux 5300 lm, rated power 32.00 W, luminaire luminous efficacy 165 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 100,000 h, average rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel, powder-coated white (RAL 9016). Anti-glare cubes silver-gray, with a fine surface structure (RAL 7001). The anti-glare cubes can be made in other RAL colors on request. The color of the anti-glare cubes has no relevant influence on the lighting characteristics of the luminaire. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 7.4 kg. Reverse polarity protected quick connection with mains forwarding up to Ø 2.5 mm2. Connection of the ballast to the luminaire using a plug connection (plug and play). The packaging concept of the luminaire enables the operating device to be removed separately for pre-assembly, the other components of the luminaire remain protected until final assembly. With external operating device, digitally dimmable (DALI). Operating device according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Operating device is idle-proof and protected against incorrect connection, short circuits, overloads and overtemperatures. Output ripple of the operating device 4% for effective control of the LED system and flicker-free light. The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires that are coordinated in appearance. Project-specific versions with varying luminaire features are available on request.
