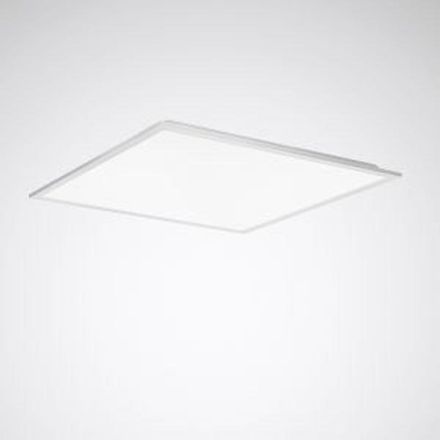

Trilux 7630365 2330 G3 M84 PW19 3600-830 ETWD LED recessed luminaire

Trilux 7630365 2330 G3 M84 PW19 3600-830 ETWD LED recessed luminaire

In stock

SKU: 870408

Price on request

€109.05

€0

Overview

Square LED recessed ceiling light with prismatic PMMA cover. Version M84 (625 mm x 625 mm). Suitable for control via smartphone/tablet using the LiveLink Basic Wireless app (iOS and Android). For system ceilings with visible support rails. PMMA cover with microprismatics. With deep-wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Screen-compatible in accordance with EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all around. Harmonious lighting effect due to evenly illuminated light emission. Rated luminous flux 3400 lm, rated power 31.00 W, light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Average rated service life L65(tq 25 °C) = 50,000 h. Luminaire body made of aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 620 mm x 620 mm, luminaire height 34 mm. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20, protection type on the room side: IP40, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.4 kg. With electronic control gear, can be dimmed wirelessly using compatible systems (app/button). Control gear in accordance with DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a button function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	31 W
Rated luminous flux according to IEC 62722-2-1:	3400 lm
Suitable for number of lamps:	1
Length:	620 mm
Width:	620 mm
Height/depth:	34 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Energy efficiency class of the built-in light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Light distributor:	other
Installation height/depth:	190 mm
Without dimming function:	no
Installation width:	620 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	620 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
Dimming DSI:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-1 0 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
DALI dimming:	yes
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Programmable dimming:	yes
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	yes
Zigbee dimming:	no
Dimming with push button:	yes
Dimming depending on the operating device:	yes
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	110 lm/W
Power factor:	0.95
Number of poles:	2
Conductor cross-section:	1.5 mm²

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HAB2330 G3 M84 PW19 3600-830 ETWD

Manufacturer

HAN7630365

GTIN4018242643912

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13400lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1Yes

Width620 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonYes

Dimming programmableYes

Installation width620 mm

Installation height/depth190 mm

Installation length620 mm

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth34 mm

Power factor0.95

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy110lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length620 mm

Max. system performance31 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles2

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Housing materialAluminum
