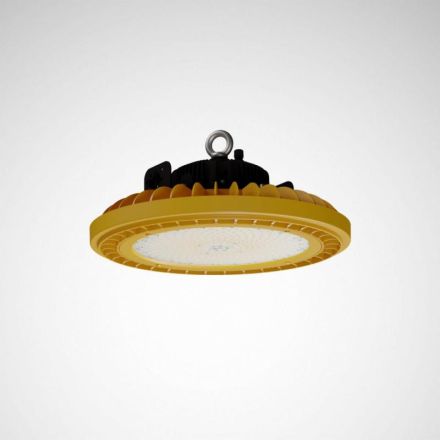

Trilux 7671340 Orex 2 39 233-840 ET AL CG 0.25m LED high bay light

In stock
SKU: 864877
€1,491.65
Into a basketIn the basketGo

Overview

Robust, round high bay spotlight for potentially explosive areas. For use in areas at risk from an explosive atmosphere. Due to the high protection class and highly resistant materials, also suitable for outdoor use. ATEX marking II 3D EX TC OP IS IIIC T105 DC, II 2D EX TB OP IS IIIC TX DB, II 3G EX EC OP IS IIC TX GC, -. For suspended mounting, ring eyelet made of stainless steel included in delivery. Wall, ceiling, mast and pipe mounting possible using accessories that must be ordered separately. With Lambertian light distribution. Rated luminous flux 23300 lm, rated power 160.00 W, luminous efficacy of the luminaire 145 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 70,000 h. Luminaire body made of a cast aluminum alloy with a surface protected against corrosive environments. Cover plate made of tempered glass. . Luminaire diameter 390 mm, luminaire height 140 mm. Weight: 6.8 kg. Protection class (EN 61140): I, Protection type (DIN EN 60529): IP66, Shock resistance degree according to IEC 62262: IK08, Test temperature glow wire test according to IEC 60695-2-11: . Permissible ambient temperature (ta): -32 °C - +50 °C. A connection screw connection (PA) and a 250 mm long connection cable are included in the scope of delivery. With electronic operating device, switchable. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark.

Property Value
Max. System power: 160 W
Rated luminous flux according to IEC 62722-2-1: 23300 lm
Suitable for number of lamps: 1
Length: 390 mm
Width: 390 mm
Height/depth: 140 mm
Protection rating (IP): IP66
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 90 to 275 V
Housing color: yellow
Housing material: aluminum
Color temperature: 4000 K
Impact resistance: IK08
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Suitable for wall mounting: yes
Outer diameter: 390 mm
Energy efficiency class of the built-in light source: other
Voltage type: AC
With motion detector: no
Beam angle: medium beam 21-40°
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -32 to 55 °C
Socket: other
Connection type: other
With control gear: yes
Cover material: opal glass
Light distributor: focus lens
Without Dimming function: yes
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: electronic transformer
Suitable for recessed mounting: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for strip light configuration: no
Suitable for pendant suspension: yes
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: without
Covering of the luminaire with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
DALI dimming: no
Mains voltage modulation dimming: no
Trailing edge dimming: no
Phase control dimming: no
Programmable dimming: no
RF dimming: no
Sine wave reduction dimming: no
Touch and dim dimming: no
Zigbee dimming: no
Dimming with push button: no
Dimming depending on the operating device: no
Rated service life L70/B50 at 25 °C: 70000 h
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 850 °C - 30 s
Luminaire luminous efficacy: 146 lm/W
Power factor: 0.95
Wiring type: Termination
Number of poles: 3

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABOrex 2 39 233-840 ET AL CG 0,25m
ManufacturerTrilux
HAN7671340
GTIN4018242581160
Covering the luminaire with thermal insulation material possibleYes
Connection typeOther
Type of wiringDiploma
Execution of the gridWithout
Beam angleMedium beam 21-40°
Outer diameter390 mm
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-123300lm
Rated ambient temperature according to IEC62722-2-1-32 to 55 °C
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1No
Width390 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Suitable for wall mountingYes
Housing colorYellow
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth140 mm
Power factor0.95
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy146lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorFocus lens
Light distributionSymmetrical
Length390 mm
Max. system performance160W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage90 to 275 V
Without dimming functionYes
Number of poles3
Impact resistanceIK08
IP protection)IP66
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialGlass opal
Housing materialAluminum
