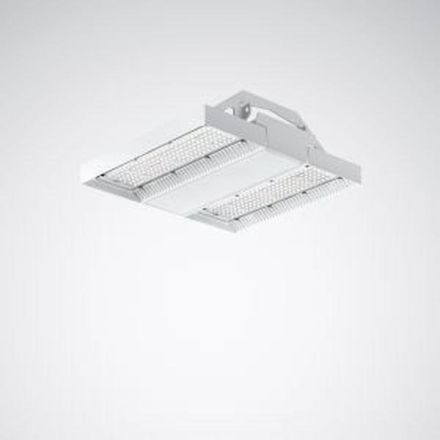

Trilux 7699551 Mirona Fit-Spo TB LED13000-940 ETDD LED high bay luminaire

Robust LED high bay spotlight, ball-proof. Suitable for use in rooms with an increased fire risk. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. Surface-mounted luminaire for ceiling mounting. Optical system composed of a PC lens optic. With deep-wide beam light distribution. LED system consisting of 2 LED modules, mounted on an aluminum support. Rated luminous flux 13100 lm, rated power 89.00 W, luminous efficacy 147 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, Television Lighting Consistency Index (TLCI) > 80. General color rendering index (CRI) Ra > 90. Average rated service life L80(tq 50 °C) = 100,000 h, L80(tq 25 °C) = 100,000 h, average rated service life L90(tq 25 °C) = 50,000 h. Robust die-cast aluminum body with integrated cooling fins. Surface coated white (RAL 9016). Dimensions (L x W): 320 mm x 342 mm, luminaire height 63 mm. Reinforcement on the rear of the luminaire body for special use in sports facilities. Ball-proof in accordance with DIN 18032-3. Permissible ambient temperature (ta): -30 °C - +50 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 4.3 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
