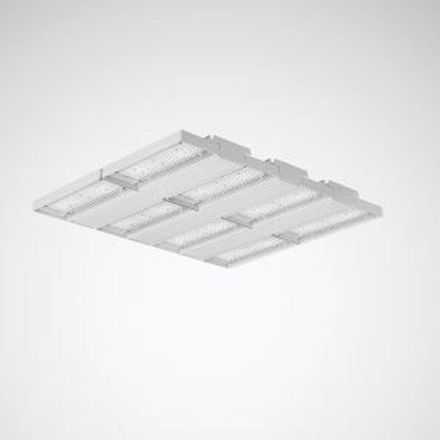

Trilux 7699751 Mirona Fit TB LED70000-840 ETDD LED high bay luminaire

Robust LED high bay spotlight. Complies with DIN 10500. The lights are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. Suitable for use in rooms with an increased fire risk. Suitable for ceiling mounting and suspended mounting using optional accessories. Optical system composed of a PC lens optic. With deep-wide beam light distribution. LED system consisting of 8 LED modules, mounted on aluminum supports. Rated luminous flux 71600 lm, rated power 425.00 W, luminous efficacy 168 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L85(tq 45 °C) = 50,000 h, average rated service life L80(tq 45 °C) = 70,000 h. Robust die-cast aluminum body with integrated cooling fins. Surface coated white (RAL 9016). Dimensions (L x W): 649 mm x 775 mm, luminaire height 63 mm. Permissible ambient temperature (ta): -30 °C - +45 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 16.8 kg. With 5-pin connection cable 5 x 0.75 mm2 (1500 mm). With 3 electronic control gears, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
