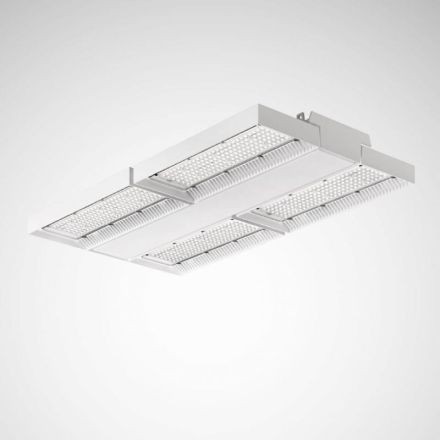

Trilux 7706451 Mirona Fit TB LED35000-865 ETDD LED high bay luminaire

Trilux 7706451 Mirona Fit TB LED35000-865 ETDD LED high bay luminaire

In stock

SKU: 864867

Price on request

€875.83

€0

Overview

Robust LED high bay spotlight. Complies with DIN 10500. The luminaires are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. Suitable for use in rooms with an increased fire risk. Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-prone premises (D identification). Suitable for ceiling mounting and suspended mounting using optional accessories. Optical system composed of a PC lens optic. With deep-wide beam light distribution. LED system consisting of 4 LED modules mounted on an aluminum support. Rated luminous flux 35000 lm, rated power 208.00 W, luminaire luminous efficacy 168 lm/W. Light color daylight white, correlated color temperature (CCT) 6500 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L85(tq 50 °C) = 50,000 h, average rated service life L80(tq 50 °C) = 70,000 h. Robust die-cast aluminum body with integrated cooling fins. Surface coated white (RAL 9016). Dimensions (L x W): 649 mm x 342 mm, luminaire height 63 mm. Permissible ambient temperature (ta): -30 °C - +50 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 7.2 kg. With 5-pin connection cable 5 x 0.75 mm2 (1500 mm). With 2 electronic control gears, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

< tr>

Property	Value
Max. System power:	208 W
Rated luminous flux according to IEC 62722-2-1:	35000 lm
Protection class:	I
Impact resistance:	IK08
Protection class (IP):	IP65
Housing color:	white
Color temperature:	6500 K
Suitable for number of bulbs:	1
Light source:	LED not replaceable
Length:	649 mm
Width:	342 mm
Height/depth:	63 mm
Socket:	other
With light source:	yes
Operating device:	electronic transformer
Nominal voltage:	230 to 240 V
Beam angle:	medium beam 21-40°
DALI dimming:	yes
Light color:	white
With control gear:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Housing material:	Aluminium
With protective cover:	no
Reflector material:	without reflector
Reflector:	without
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	yes
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming leading edge:	no
Dimming leading edge:	no
Dimming potentiometer (integrated into the device):	no
Dimming GPRS:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Focus lens
Energy efficiency class of the permanently installed light source:	other
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	-30 to 55 °C
Power factor:	0.95
Type of wiring:	Termination
Number of poles:	5
Connection type:	other

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABMirona Fit TB LED35000-865 ETDD

Manufacturer

HAN7706451

GTIN4018242583256

Connection typeOther

Type of wiringDiploma

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-135000lm

Rated ambient temperature according to IEC62722-2-1-30 to 55 °C

Operating deviceElectronic transformer

Width342 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature6500K

Color rendering index CRI80-89

VersionOther

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth63 mm

Power factor0.95

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light colorWhite

Light distributorFocus lens

Light distributionSymmetrical

Length649 mm

Max. system performance208W

With operating deviceYes

With light sourceYes

With protective coverNo

Nominal voltage230 to 240 V

Without dimming functionNo

Number of poles5

ReflectorWithout

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
