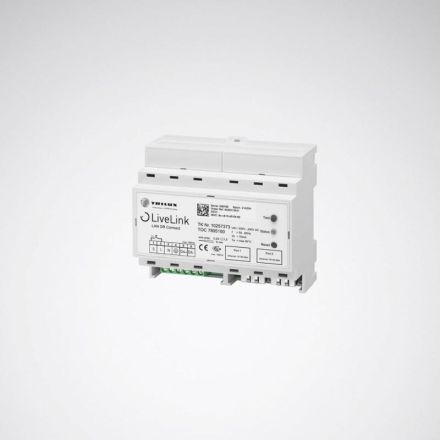

Dali control unit with integrated RJ45 LAN module. The control unit with Connect equipment enables master-slave networking of up to 10 control units via LAN. For the connection, commissioning and operation of LiveLink sensor units, LiveLink DALI button couplers and DALI lights. The control unit can manage up to 64 DALI participants. Predefined room configurations (use cases) with all planning-relevant data enable quick and easy commissioning. The lights and LiveLink system components are addressed using a graphical user interface (iOS/Android app) for tablet PCs. Fully automatic (automatic on/off) or semi-automatic (only automatic off) presence detection, button functions freely programmable. The Connect equipment enables either individual room control per control unit or overall control via a master-slave circuit, e.g. for controlling sports halls. The control unit with integrated 230 V power supply is designed for installation on a DIN rail (TS35). Commissioning with the LiveLink Install app is carried out via a WLAN connection (WPA2 encryption) with a tablet PC. With DALI interface for connecting lights, LiveLink sensors and button couplers. Can be operated optionally with a tablet PC, smartphone or installation button. RJ45 socket for integration into the existing on-site network with LAN or WLAN router. Can be operated optionally with a tablet PC, smartphone or installation button. To commission and operate the device using a tablet PC or smartphone, the control unit must be connected to a WLAN-enabled router (at least in accordance with IEEE 802.11b).
