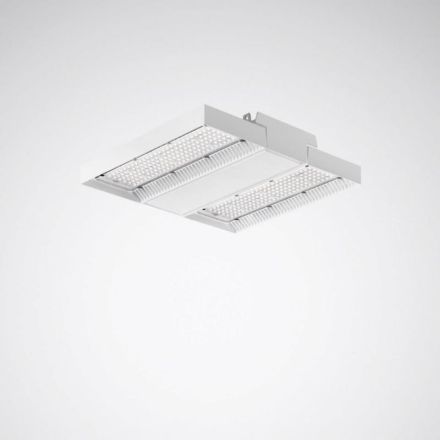

Trilux 7897551 Mirona Fit TB 17000-840 ETDD LED high bay luminaire

Robust LED high bay spotlight. Complies with DIN 10500. The luminaires are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. Suitable for use in rooms with an increased fire risk. Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-prone premises (D identification). Suitable for ceiling mounting and suspended mounting using optional accessories. Optical system composed of a PC lens optic. With deep-wide beam light distribution. LED system consisting of 2 LED modules, mounted on an aluminum support. Rated luminous flux 17000 lm, rated power 101.00 W, luminous efficacy of the luminaire 168 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L85(tq 50 °C) = 50,000 h, average rated service life L80(tq 50 °C) = 70,000 h. Robust die-cast aluminum body with integrated cooling fins. Surface coated white (RAL 9016). Dimensions (L x W): 320 mm x 342 mm, luminaire height 63 mm. Weight: 3.8 kg. Permissible ambient temperature (ta): -30 °C - +50 °C. Protection class (EN 61140): I, Protection type (DIN EN 60529): IP65, Shock resistance level according to IEC 62262: IK08, Test temperature glow wire test according to IEC 60695-2-11: 850 °C. With 5-pin connecting cable 5 x 0.75 mm2 (1500 mm). With electronic ballast, digitally dimmable (DALI). Operating device according to DALI-2 standard (EN 62386). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
