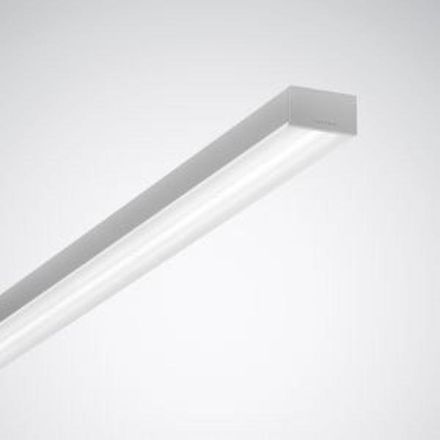

Trilux 7916862 SFlow-Act D2-L MRWD 4000 ETDD8 01 LED wall/ceiling light

LED surface-mounted luminaire for single or strip lighting applications. Luminaire with Active equipment for controlling the light colour using a separate control unit. For wall or ceiling mounting indoors. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L2). For panel ceilings in module 100. Optical system in micro reflector technology (MRWD) with highly efficient, white-polished reflector chambers made of plastic with diffuser disc for an evenly illuminated light image with maximum visual comfort. With additional clear cover disc integrated in the optical system for flush-fitting on the room side and protection of the LED. Discreet lateral light output over the entire length of the luminaire. With symmetrical, wide-beam light distribution. The following information on the luminaire luminous flux and the system connection power refer to the operation of this luminaire with dynamically adjustable light colour (HCL) in the warm white light colour operating mode (2700 K). Rated luminous flux 4000 lm, rated power 38.00 W, luminaire luminous efficacy 105 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Luminaire body made of sheet steel (RAL 9016). Dimensions (L x W): 1413 mm x 84 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.2 kg. With electronic operating device for switching, dimming and controlling the light color using a DALI Device Type 8 capable control device. Operating device according to DALI-2 standard (EN 62386). The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
