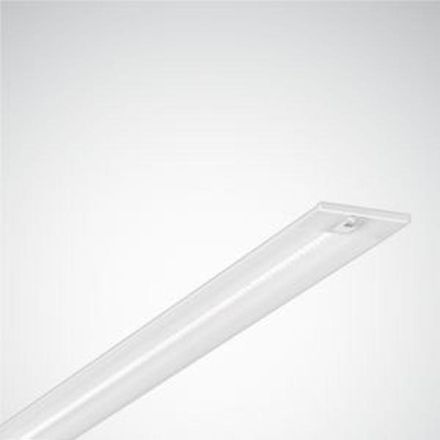

Trilux 7919862 SFlow-Act C3-L MRW LED4000 ETDD8 LLWS 01 LED recessed light, white

LED recessed light for single or strip lighting applications. Light with Active equipment for controlling the light color using a separate control unit. LiveLink Sensor IR Micro for daylight-dependent control and presence detection. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the switch-off time to the use of the room. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI participants. Square detection, presence detection squares max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended installation height of 2.8 m, permissible installation height 2.5 m to 4 m. For installation in sawn ceiling openings. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L2). For panel ceilings in module 100. Continuous light strips by connecting the luminaire bodies using tool-free assembly technology. Optical system in micro-reflector technology (MRW) with highly efficient reflector chambers made of white-polished plastic for high lighting comfort and efficiency. With additional clear cover plate integrated in the optical system for flush-fitting on the room side and protection of the LED. Discreet lateral light output over the entire length of the luminaire. With symmetrical, wide-beam light distribution. LED system and luminaire optics can be snapped into the luminaire body as an assembly without tools. Assembly secured with a steel cable to prevent falling during assembly. The following information on the luminaire luminous flux and the system connected load refer to the operation of this luminaire with dynamically adjustable light color (HCL) in warm white light color operating mode (2700 K). Rated luminous flux 4000 lm, rated power 36.00 W, luminaire luminous efficacy 111 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1473 mm x 100 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.5 kg. Mains connection is made using plug-in terminals. The electrical connection of the components is automatic. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8 capable control device. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
