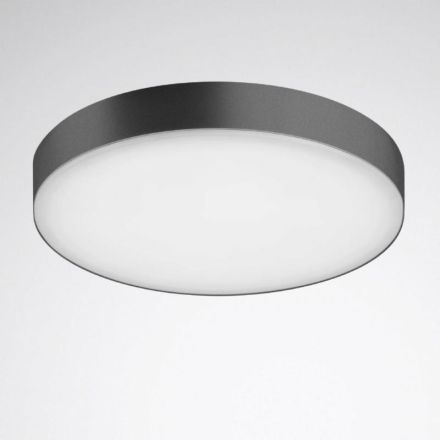

Trilux 7932162 OnplanaAct D11 OTA25 4000 ETDD8 26 LED wall/ceiling light, anthracite

In stock
SKU: 869440
€982.57
Into a basketIn the basketGo

Overview

Round LED surface-mounted downlight, installation height 65 mm. Luminaire with Active equipment for controlling the light color using a separate control unit. For wall and ceiling mounting. Cover panel made of translucent PMMA. With predominantly direct light distribution. Increased lighting comfort through decorative ceiling illumination. Harmonious lighting effect through evenly illuminated light output. The following information on the luminaire luminous flux and the system connected load refer to the operation of this luminaire with dynamically adjustable light color (HCL) in warm white light color operating mode (2700 K). Rated luminous flux 4000 lm, rated power 32.00 W, luminaire luminous efficacy 125 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Luminaire body anthracite structural powder-coated. (DB 703). External dimensions ceiling ring Ø 445 mm, luminaire height 65 mm. Permissible ambient temperature (ta): - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.6 kg. With connection terminal up to 2.5 mm, strain relief and mains forwarding. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8 capable control device. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

>no
Property Value
Max. System power: 30 W
Rated luminous flux according to IEC 62722-2-1: 4050 lm
Housing color: anthracite
Housing material: aluminum
Protection class (IP): IP40
Outer diameter: 445 mm
Socket: other
Light source: LED not replaceable
Protection class: I
With light source: yes
With operating device: yes
Suitable for recessed mounting: no
Height/depth: 65 mm
With motion detector: no
Color temperature: 4000 K
Nominal voltage: 220 to 240 V
Beam angle: free beam/diffuse
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Light distribution: symmetrical
Operating device: electronic transformer
Impact resistance: IK06
Luminaire with limited surface temperature 'D-mark': no
Suitable for number of bulbs: 1
Luminous flux: 4050 lm
Covering of the lamp with thermal insulation material possible: yes
Voltage type: AC
Light color: white
Suitable for track mounting: no
Adjustability: not adjustable
Suitable for clamp mounting: no
Suitable for pendulum suspension: yes
With light sensor: no
Suitable for surface mounting: yes
Suitable for cable system: no
Surface: powder-coated
Brushed surface: no
Dimming depending on operating device: yes
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: yes
Dimming DMX: no
Dimming DSI:
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Light distributor: Diffuser lens/optics/panel
Light emission: direct
Energy efficiency class of the built-in light source: other
Total harmonic distortion (THD): 14
Protection class (NEMA): other
Rated ambient temperature according to IEC62722-2-1: -20 to 25 °C
Power factor: 0.95
Number of poles: 5
Connection type: Plug-in terminal
Luminous efficacy: 135 lm/W
Suitable for computer workstations according to EN 12464-1: no
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Photobiological safety according to EN 62471: RG1
Colour consistency (McAdam ellipse): SDCM3

Characteristics

Energy efficiency class of the permanently installed light sourceOther
Total harmonic distortion (THD)14
HABOnplanaAct D11 OTA25 4000 ETDD8 26
ManufacturerTrilux
HAN7932162
GTIN4018242647040
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Beam angleFree-radiating/diffuse
Outer diameter445 mm
Rated luminous flux according to IEC 62722-2-14050lm
Rated ambient temperature according to IEC62722-2-1-20 to 25 °C
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM3
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for number of lamps1
Suitable for pendulum suspensionYes
Suitable for rope systemNo
Suitable for busbar mountingNo
Housing colorAnthracite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth65 mm
Power factor0.95
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy135lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux4050lm
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Max. system performance30W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
SurfacePowder coated
Brushed surfaceNo
Without dimming functionNo
Photobiological safety according to EN 62471RG1
Number of poles5
Impact resistanceIK06
IP protection)IP40
Protection class (NEMA)Other
Protection classI
Voltage typeAC
AdjustabilityNot adjustable
Housing materialAluminum
