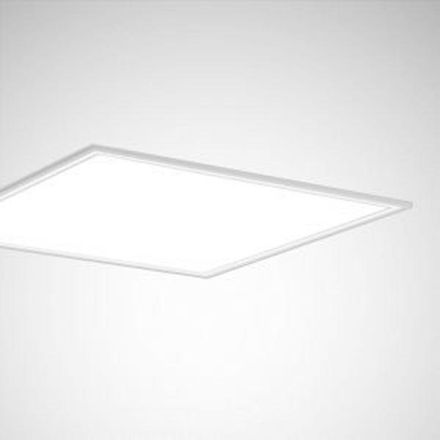

Trilux 7932762 BelvisoAct C1 625 CDP LED4000 ETDD8 LED recessed luminaire, white

LED recessed luminaire with microprismatic cover CDP. Luminaire with Active equipment for controlling the light color using a separate control unit. With all-round, flat light frame. Universally applicable in sawn installation openings and in system ceilings with concealed or visible support rails. Installation in system ceilings with asymmetrical, concealed support rails on request. For system dimensions 625 mm x 625 mm, for ceiling cutouts 605 mm x 605 mm, installation depth 330 mm. With highly efficient microprismatic CDP. Direct beam. Suitable for computer workstations in accordance with EN 12464-1. Completely harmonious lighting effect thanks to evenly illuminated light emission. The following information on the luminaire luminous flux and the system connected load refer to the operation of this luminaire with dynamically adjustable light color (HCL) in the warm white light color operating mode (2700 K). Rated luminous flux 4050 lm, rated power 31.00 W, luminaire luminous efficacy 130 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Average rated service life L80 (tq 25 °C) = 70,000 h, average rated service life L85 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 622 mm x 622 mm, luminaire height 90 mm. Permissible ambient temperature (ta): - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 8.1 kg. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8 capable control device. Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
