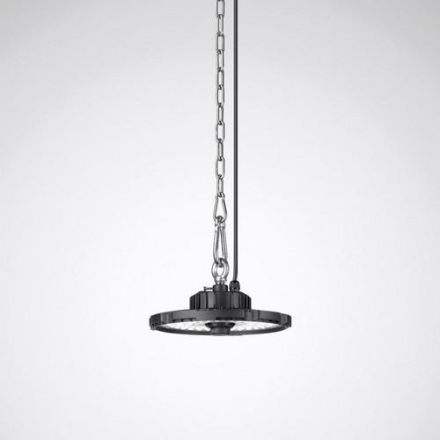

Trilux 7959440 2380 G3 TB 10000-840 ET LED high bay luminaire

Round LED high bay spotlight for suspended mounting. With adapter for quick attachment of an optional HF presence sensor, available as a separate accessory. Functional parameters of the HF motion sensor are set using the IR remote control, available as a separate accessory. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For suspended mounting as a single luminaire. One-point suspension on a centrally positioned screw hook. Mounting accessories available as accessories to be ordered separately. Optical system with PC lens technology. With one optical unit per LED module. With rotationally symmetrical, deep-wide light distribution. Rated luminous flux 10000 lm, rated power 80.00 W, luminous efficacy of the luminaire 125 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated service life L65(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Surface coated black (RAL 9005). Luminaire height 145 mm, luminaire diameter 268 mm. Permissible ambient temperature (ta): -20 °C - +40 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.5 kg. With electronic control gear, switchable. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
