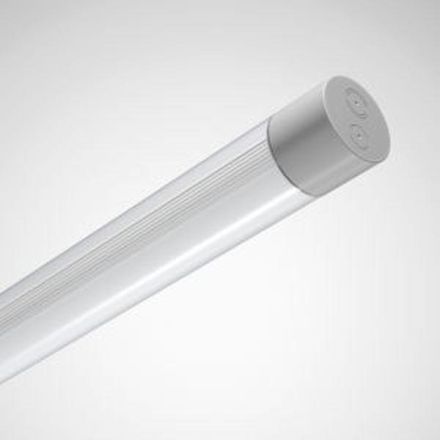

Trilux 7977740 Tugra 15 PL 64-840 ET 23 LED tube light

Multivariable and modern tubular luminaire with 75 mm profile diameter. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D identification). For wall and ceiling mounting. Standard stainless steel mounting clips (2 pieces, V2A) with triangle included in delivery. Optional accessories enable further mounting concepts. As a single luminaire or in light strip application. The continuous mounting channel of the luminaire body enables very high flexibility in the placement of the fastening points. The packaging is made of recyclable cardboard, plastic-free. Multiple packaging with 28 luminaires and project packaging with 108 luminaires per packaging unit also reduce the general consumption of resources in the overall process. Opal cylinder profile with photometrically effective prism structure as secondary optics. With Lambertian light intensity distribution. With predominantly direct light distribution. With a slight indirect component for decorative surface brightening. Rated luminous flux 6400 lm, rated power 49.00 W, luminaire luminous efficacy 130 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire profile made of PMMA. Color of the end caps light gray (RAL 7035). End cap made of thermoplastically fused PMMA / TPE with high-quality, matt surface structure and surface quality according to VDI24. For protection class-compliant power supply (IP66), the end cap is equipped with 3 self-sealing membranes for cable cross-sections 7 mm - 13 mm and 3 pre-stamped power supply points for PG screw connections (M20/M25). The end cap is connected to the profile cylinder using a bayonet lock. Standard end caps included in delivery. Luminaire length 1568 mm, luminaire height 75 mm, luminaire body diameter 75 mm. The device carrier is fixed to the luminaire profile with transparent devices to prevent shadows. Permissible ambient temperature (ta) -25 °C - 30 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.2 kg. The connection is made using a plug-in terminal with mains forwarding equipment. The barrier-free cable duct within the luminaire profile makes it easier to pull in optional through-wiring or alternative uses such as laying network cables. With electronic control gear, switchable. ENEC validation by an independent testing center is in preparation. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
