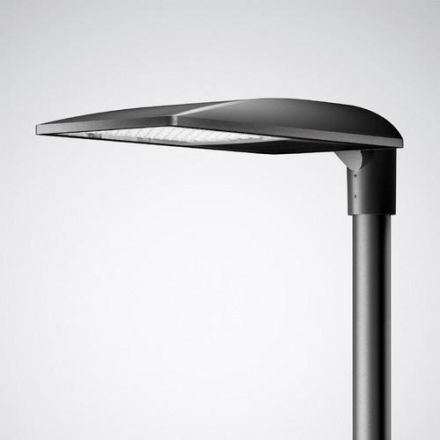

Trilux 9002208963 Jovie70-AB7L16LA-135-740-ET-EAE-26 LED mast light

Versatile outdoor mast light in a reduced, international design language and flat construction. With intelligent label for quickly accessing luminaire information using a QR code. Large version, length of luminaire head 680 mm. In combination with the mast attachment, which must be ordered separately, it can be used as a mast-top light (spike size Ø 76 mm / Ø 60 mm, Jovie Z MB D...) or mast-mounted light (spike size Ø 42 mm / Ø 60 mm, Jovie AZ MB D...). The inclination of the luminaire head can be adjusted in 4 ways. (0° / 5° / 10° / 15°). In MLT version (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. Asymmetrical wide-beam light distribution for lighting streets according to M lighting classes with a street width to light point height ratio of up to 1.7. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. The light source can be replaced by qualified personnel. The LED system consists of MLT LED modules with 4 LEDs each. Number of modules: 16. Rated luminous flux 13,500 lm, rated power 98.0 W, luminaire luminous efficacy 137 lm/W. Power factor 0.95. Efficiency Plus version with increased luminaire efficiency by distributing the luminous flux over a larger number of LEDs. General color rendering index (CRI) > 70, correlated color temperature (CCT) 4000 K. Other LED light colors available on request. Average rated service life LCLO (tq 25 °C) 100,000. The light source is replaceable in accordance with ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Color DB703 anthracite. Coating suitable for marine weather on request. With PMMA cover plate, printed. Cover plate can be individually printed on customer request. Visible label behind the cover plate protected against the effects of weather on request. Protection class (EN 61140): 02, protection type (DIN EN 60529): 66, impact resistance level according to IEC 62262: IK09. Mast available on request. Wind attack area Fw (m²) = 0. Weight: 8.9 kg. The luminaire is connected without opening the luminaire body using the connecting cable that runs out the outside. The operating device can be replaced by qualified personnel. Length of the connecting cable: 12 m. With electronic operating device and power reduction via integrated evaluation electronics. Reduction of the luminaire luminous flux to 50% for a period of 7 hours (-2h/+5h), distributed around a daily determined midpoint of the duty cycle. Parameterizable ballast with constant luminous flux (CLO). Connected load at the end of the service life: 103.00 W. Control gear in accordance with the DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire meets the requirements of the applicable EU directives and the Product Safety Act (CE marking). In addition, it is ENEC-certified by an independent testing body. Surge voltage resistance differential mode / common mode: 6 kV / 10 kV. The luminaire meets the requirements of EN 60598 and is designed for exposure to wind in accordance with EN 1991 (Eurocode) with a base wind speed of up to 30 m/s (corresponds to wind zone 4 in Germany) in terrain category 1. This takes into account a snow load (up to 1 kN/m²) and icing (up to 2 cm) at a light point height in accordance with the installation instructions. Exposed locations (e.g. bridges, installation on buildings or directly next to railway tracks) are not taken into account. Impact loads are not taken into account.
