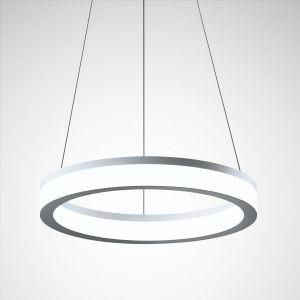

Trilux 6335040 PolaronIQ H2 LED2000-830 ET 2.0m LED pendant light, white

In stock
SKU: 849351
€983.94
Into a basketIn the basketGo

Overview

Decorative LED pendant light with a ring-shaped light element. With indirect light distribution. For suspended installation as a single light. The pendant length is 2000 mm. The length of the pendant can be individually adjusted at the installation location. With indirect light distribution, shielding is provided by a primary screen. Glare rating according to UGR classification (EN 12464-1) < 22. Rated luminous flux 1700 lm, rated power 17.00 W, luminaire luminous efficacy 100 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 70,000 h, average rated service life L85 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Luminaire diameter Ø 403 mm, luminaire height 50 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance according to IEC 62262: IK05, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.4 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

< td>no
Property Value
Max. System power: 17 W
Rated luminous flux according to IEC 62722-2-1: 1700 lm
Color temperature: 3000 K
Diameter: 403 mm
Socket: other
Suitable for number of bulbs: 1
Height/depth: 50 mm
Protection class (IP): IP40
Protection class: I
Pendant length: 2000 mm
Operating device: electronic transformer
Housing material: aluminum
Suitable for computer workstations in accordance with EN 12464-1: no
With light source: yes
With operating device: yes
Nominal voltage: 230 V
Suspension included: yes
Cover material: structured plastic
Light source: LED not replaceable
Housing color: white
Grid design: without
Reflector: without
Suitable for light strip configuration: no
Direct/indirect components can be controlled separately: no
Light distribution: symmetrical
Light emission: direct/indirect
Impact resistance: IK05
Luminaire with limited surface temperature 'D-mark': no
Color rendering index CRI: 80-89
Suitable for emergency lighting: no
Light color: white
Voltage type: AC
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI:
Dimming DMX: no
Dimming programmable: no
Dimming DSI: no
Dimming RF: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: yes
Light distributor: Diffuser lens/optics/panel
Energy efficiency class of the built-in light source: other
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Power factor: 0.9
Rated service life L70/B50 at 25 °C: 70000 h
Type of wiring: suitable for through-wiring
Number of poles: 3
Connection type: Plug-in terminal

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABPolaronIQ H2 LED2000-830 ET 2.0m
ManufacturerTrilux
HAN6335040
GTIN4018242309481
Suspension includedYes
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-11700lm
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Direct/indirect components can be controlled separatelyNo
Diameter403 mm
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth50 mm
Power factor0.9
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Max. system performance17 W
With operating deviceYes
With light sourceYes
Nominal voltage230V
Without dimming functionYes
Pendulum length2000 mm
Number of poles3
ReflectorWithout
Impact resistanceIK05
IP protection)IP40
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic structured
Housing materialAluminum
