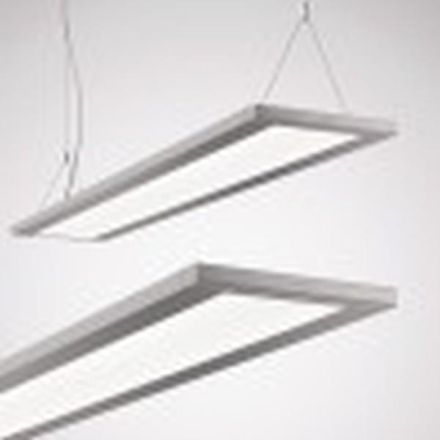

Trilux 7142651 LuceoS D/H2-L CDP-A 5000 830 ETDD 03 LED pendant light, silver

In stock
SKU: 857114
€426.96
Into a basketIn the basketGo

Overview

Versatile lighting module for hanging and surface-mounted luminaires. In combination with accessories that must be ordered separately, the modules are completed to form individual luminaires or light strip applications with a continuous light emission surface for surface-mounted or suspended installation. In combination with the accessories used, suitable for suspended installation or surface-mounted installation. Suspended light strip application across corners possible using a node that must be ordered separately. With highly efficient CDP microprismatics and internal reflector. With asymmetrical, wide-beam light distribution. Completely harmonious lighting effect thanks to evenly illuminated light emission. LED system with angled LEDs positioned to the side of the light emission opening and a chamber system for highly effective reflection and transmission of the light. Rated luminous flux in the hanging luminaire application 4800 lm, rated luminous flux in the surface-mounted luminaire application 4800 lm, rated power 37.00 W, luminaire luminous efficacy 129 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L90(tq 25 °C) = 50,000 h. Luminaire body made of extruded aluminum profile. Head pieces made of die-cast aluminum. Luminaire solvent-free powder-coated silver gray. (RAL 9006). Dimensions (L x W): 1490 mm x 240 mm, luminaire height 20 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.2 kg. The electrical connection is made by plugging in the connection headpiece. The electrical connection of the assemblies is made automatically. With electronic operating device, digitally dimmable (DALI). Operating device according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a button function via DALI control terminals (Touch DIM). The operating device is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property Value
Max. System power: 37 W
Rated luminous flux according to IEC 62722-2-1: 4800 lm
Color temperature: 3000 K
Length: 1490 mm
Width: 240 mm
Socket: other
Suitable for number of bulbs: 1
Height/depth: 20 mm
Protection type (IP): IP20
Protection class: I
Pendant length: 2000 mm
Operating device: electronic transformer
Housing material: aluminum
Suitable for computer workstations in accordance with EN 12464-1: no
With light source: yes
With Operating device: yes
Nominal voltage: 230 V
Suspension included: no
Cover material: structured plastic
Light source: LED not replaceable
Housing color: Silver
Design of the grid: without
Reflector: without
Suitable for Light strip configuration: yes
Direct/indirect components separately controllable: no
Light distribution: asymmetrical
Light emission: direct/indirect
Impact resistance: IK03
Luminaire with limited surface temperature 'D-mark': no
Color rendering index CRI: 80-89
Suitable for emergency lighting: no
Light color: white
Voltage type: AC
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: yes
Dimming DMX: no
Dimming programmable: no
Dimming DSI: no
Dimming RF: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming phase control: no
Dimming phase control: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: yes
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Light distributor: other
Energy efficiency class of the permanently installed light source: other
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Power factor: 0.95
Type of wiring: suitable for through wiring
Number of poles: 5
Connection type: Plug-in terminal

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABLuceoS D/H2-L CDP-A 5000 830 ETDD 03
ManufacturerTrilux
HAN7142651
GTIN4018242413553
Suspension includedNo
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Rated luminous flux according to IEC 62722-2-14800lm
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1No
Width240 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimYes
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Direct/indirect components can be controlled separatelyNo
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for number of lamps1
Suitable for light strip configurationYes
Suitable for emergency lightingNo
Housing colorSilver
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth20 mm
Power factor0.95
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorOther
Light distributionAsymmetrical
Length1490 mm
Max. system performance37W
With operating deviceYes
With light sourceYes
Nominal voltage230V
Without dimming functionNo
Pendulum length2000 mm
Number of poles5
ReflectorWithout
Impact resistanceIK03
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic structured
Housing materialAluminum
