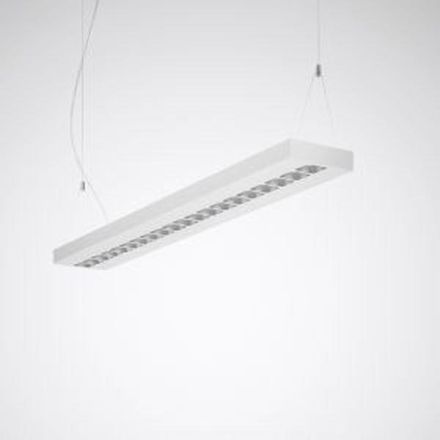

Trilux 7735651 Creavo H2-L LW19-03 46-840 ETDD X4 01 LED pendant light, white

LED pendant light with highly efficient light elements made of lens systems and cubic anti-dazzle elements. For single or strip light applications using accessories that must be ordered separately. Suitable for through-wiring. The optical system with a precisely coordinated combination of LED lenses and anti-dazzle cubes ensures very high visual comfort with very high lighting performance. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all around. Rated luminous flux 4600 lm, rated power 35.00 W, luminaire luminous efficacy 131 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 90,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel, powder-coated white (RAL 9016). Anti-glare cubes silver gray, with fine surface structure (RAL 7001). Dimensions (L x W): 1209 mm x 170 mm, luminaire height 46 mm. The anti-glare cubes can be made in other RAL colors on request. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 6.0 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. With integrated LiveLink Sensor IR Micro for connection to a LiveLink control unit for daylight-dependent control and presence detection. Connection and electrical supply via the DALI interface of the LiveLink control unit Occupies 2 DALI participants. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the follow-up time to the use of the room. Temperature range -25 °C - +55 °C. Integrated pyro sensor for the highest detection quality with 168 detection zones. A presence area of 16 m2 enables the detection of the smallest movements. Square detection, presence detection squares max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) at a recommended mounting height of 2.8 m, permissible mounting height 2.5 m to 4 m. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires that are coordinated in terms of appearance. Project-specific versions with varying luminaire features are available on request.
