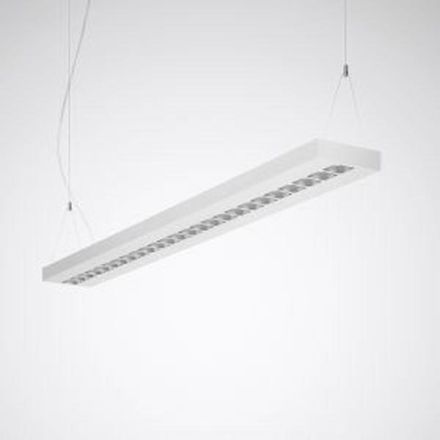

Trilux 7737940 Creavo H3-L LW16-03 58-840 ET 01 LED pendant light, white

In stock
SKU: 868891
€540.55
Into a basketIn the basketGo

Overview

LED pendant light with highly efficient light elements made of lens systems and cubic anti-dazzle elements. For single or strip light applications using accessories that must be ordered separately. Suitable for through-wiring. The optical system with a precisely coordinated combination of LED lenses and anti-dazzle cubes ensures very high visual comfort with very high lighting performance. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 16. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all around. Rated luminous flux 5800 lm, rated power 43.00 W, luminaire luminous efficacy 134 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 90,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel, powder-coated white (RAL 9016). Anti-glare cubes silver gray, with fine surface structure (RAL 7001). Dimensions (L x W): 1509 mm x 170 mm, luminaire height 46 mm. The anti-glare cubes can be made in other RAL colors on request. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 7.0 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires that are coordinated in appearance. Project-specific versions with varying luminaire features are available on request.

< td>no
Property Value
Max. System power: 43 W
Rated luminous flux according to IEC 62722-2-1: 5800 lm
Color temperature: 4000 K
Length: 1509 mm
Width: 170 mm
Socket: other
Suitable for number of bulbs: 1
Height/depth: 46 mm
Protection type (IP): IP20
Protection class: I
Pendant length: 2000 mm
Operating device: electronic transformer
Housing material: other
Suitable for computer workstations in accordance with EN 12464-1: yes
With light source: yes
With Operating device: yes
Nominal voltage: 220 to 240 V
Suspension included: no
Cover material: transparent plastic
Light source: LED not replaceable
Housing color: white
Grid design: without
Suitable for light strip configuration: yes
Direct/indirect components can be controlled separately: yes
Light distribution: symmetrical
Light emission: direct/indirect
Impact resistance: IK03
Luminaire with limited surface temperature 'D-mark': no
Color rendering index CRI: 80-89
Suitable for emergency lighting: no
Light color: white
Voltage type: AC
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI:
Dimming DMX: no
Dimming programmable: no
Dimming DSI: no
Dimming RF: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: yes
Light distributor: Focus lens
Energy efficiency class of the built-in light source: other
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Power factor: 0.95
Type of wiring: suitable for through wiring
Number of poles: 3
Connection type: Plug-in terminal

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABCreavo H3-L LW16-03 58-840 ET 01
ManufacturerTrilux
HAN7737940
GTIN4018242587179
Suspension includedNo
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Rated luminous flux according to IEC 62722-2-15800lm
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1Yes
Width170 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Direct/indirect components can be controlled separatelyYes
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for number of lamps1
Suitable for light strip configurationYes
Suitable for emergency lightingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth46 mm
Power factor0.95
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorFocus lens
Light distributionSymmetrical
Length1509 mm
Max. system performance43W
With operating deviceYes
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionYes
Pendulum length2000 mm
Number of poles3
Impact resistanceIK03
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic transparent
Housing materialOther
