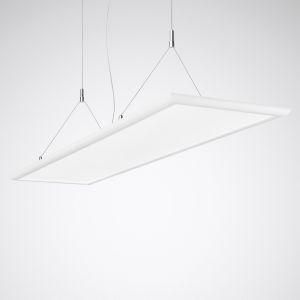

Trilux 7789940 2360 H2 PW19-IL 6000-830 ET LED pendant light

Trilux 7789940 2360 H2 PW19-IL 6000-830 ET LED pendant light

In stock

SKU: 868819

Price on request

€229.34

€0

Overview

LED pendant light with translucent PMMA cover panel. Pendant light for single light application. Y-cable suspension for suspension lengths up to: 1450 mm. Y-cable suspension and electrical connection cable included in delivery. With direct/indirect light distribution. Glare rating according to UGR classification (EN 12464-1) < 16. Suitable for screens according to EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all round. Rated luminous flux 6000 lm, rated power 55.00 W, luminous efficacy of the luminaire 109 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 5 SDCM, average rated service life L65(tq 25 °C) = 50,000 h. Luminaire body made of extruded aluminum profile. Surface coated white (RAL 9016). Dimensions (L x W): 1495 mm x 295 mm, luminaire height 20 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 5.8 kg. With external control gear, switchable. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	55 W
Rated luminous flux according to IEC 62722-2-1:	6000 lm
Color temperature:	3000 K
Length:	1495 mm
Width:	295 mm
Socket:	other
Suitable for number of bulbs:	1
Height/depth:	20 mm
Protection type (IP):	IP20
Protection class:	I
Pendant length:	1450 mm
Operating device:	electronic transformer
Housing material:	aluminum
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With Operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	opal plastic
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for Emergency light:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	1300 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	other
Energy efficiency class of the built-in lamp:	other
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Power factor:	0.95
Rated service life L70/B50 at 25 °C:	35000 h
Type of Wiring:	Termination
Number of poles:	3
Connection type:	Plug terminal

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HAB2360 H2 PW19-IL 6000-830 ET

Manufacturer

HAN7789940

GTIN4018242593415

Suspension includedYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Rated lifetime L70/B50 at 25 °C35000 hours

Rated luminous flux according to IEC 62722-2-16000lm

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1Yes

Width295 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth20 mm

LED nominal current at constant current1300mA

Power factor0.95

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1495 mm

Max. system performance55W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Pendulum length1450 mm

Number of poles3

ReflectorWithout

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
