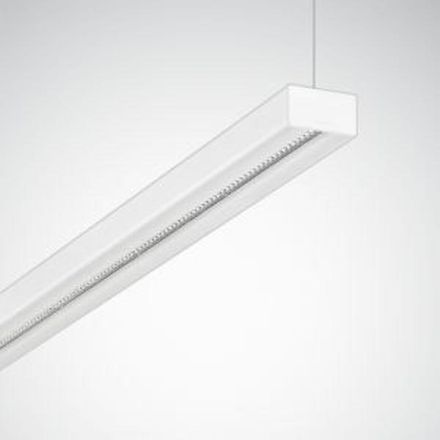

Trilux 7919062 SFlow-Act H2-L MRX 6400 ETDD8 01 LED pendant light, white

LED hanging luminaire for single or light strip applications. Luminaire with Active equipment for controlling the light color using a separate control unit. For suspended installation. As a single luminaire or in light strip application. Optical system in Micro Reflector Technology (MRX) with highly efficient, aluminum-coated reflector chambers made of plastic for high glare control and efficiency. Discreet lateral light output over the entire length of the luminaire. With direct-indirect light distribution. Screen-compatible in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all around. The following information on the luminaire luminous flux and system connected load refer to the operation of this luminaire with dynamically adjustable light color (HCL) in warm white light color operating mode (2700 K). Rated luminous flux 5500 lm, rated power 49.00 W, luminaire luminous efficacy 112 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. (RAL 9016). Dimensions (L x W): 1413 mm x 84 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.9 kg. With electronic control device for switching, dimming and controlling the light color using a DALI Device Type 8 capable control device. Operating device according to DALI-2 standard (EN 62386). The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the product safety law and bears the CE marking.
