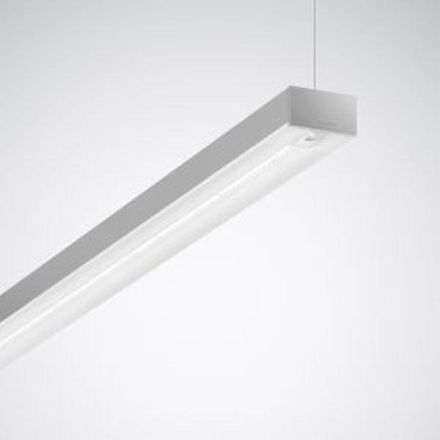

Trilux 7921662 SFlow-Act H3-L MRW 6400 ETDD8 LLWM 03 LED pendant light

LED pendant light for single or strip light applications. Light with Active equipment for controlling the light color using a separate control unit. With integrated LiveLink WiFi control unit and LiveLink sensor for daylight-dependent control and presence detection as well as WLAN module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable simple and quick commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. LiveLink Sensor IR Micro for daylight-dependent control and presence detection. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the run-on time to the use of the room. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI participants. Square detection, presence detection squares max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended installation height of 2.8 m, permissible installation height 2.5 m to 4 m. For suspended installation. As a single light or in light strip application. Optical system in micro reflector technology (MRW) with highly efficient reflector chambers made of white polished plastic for high lighting comfort and efficiency. With additional clear cover plate integrated in the optical system for flush-fitting on the room side and protection of the LED. Discreet lateral light output over the entire length of the light. With direct-indirect light distribution. The following information on the luminaire luminous flux and the system connected load refers to the operation of this luminaire with dynamically adjustable light color (HCL) in the warm white light color operating mode (2700 K). Rated luminous flux 5500 lm, rated power 51.00 W, luminaire luminous efficacy 107 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. (RAL 9006). Dimensions (L x W): 1473 mm x 84 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 5.2 kg. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8 capable control unit. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
