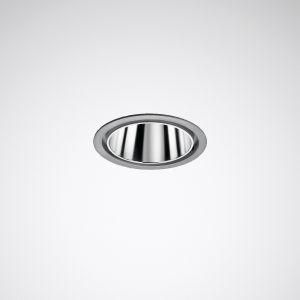

Trilux 6357151 InperlaLP C05 HR22 1800-830 ETDD 03 LED recessed ceiling spotlight, silver

Trilux 6357151 InperlaLP C05 HR22 1800-830 ETDD 03 LED recessed ceiling spotlight, silver

In stock

SKU: 848699

Price on request

€268.21

€0

Overview

Compact LED downlight in a round design. Recessed downlight for sawn ceiling openings, installation in cast concrete ceilings using accessories. Tool-free ceiling installation using quick-mounting springs. Visually and technically coordinated renovation panels for ceiling openings with larger ceiling cut-out dimensions are available as accessories in various designs. Ceiling cut-out Ø 140 mm, installation depth 100 mm. In conjunction with a closed decorative cover, protection class IP54 is achieved on the room side. High-gloss anodized aluminum reflector. Equipped with an LED spot module. Rated luminous flux 1700 lm, rated power 16.00 W, luminous efficacy 106 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 70,000 h, average rated service life L85 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Surface coated silver gray (RAL 9006). External dimensions of ceiling ring Ø 150 mm, luminaire height 103 mm. Luminaire and heat sink form a compact unit. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 1.3 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). With 5-pin connection terminal up to 2.5 mm2 for mains connection and mains forwarding. Digitally dimmable (DALI). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

d>no

Property	Value
Max. System power:	16 W
Rated luminous flux according to IEC 62722-2-1:	1700 lm
Housing color:	Silver
Housing material:	Aluminum
Protection class (IP):	IP20
Outer diameter:	150 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	100 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	103 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	electronic transformer
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high gloss
Suitable for number of bulbs:	1
Luminous flux:	1700 lm
Cover material:	without
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Total harmonic distortion (THD):	14
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Luminous intensity:	1129 cd
Type of wiring:	suitable for through wiring
Power factor:	0.9
Number of poles:	5
Connection type:	Plug-in terminal
Luminous efficacy:	106 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Colour consistency (McAdam ellipse):	SDCM3

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Total harmonic distortion (THD)14

HABInperlaLP C05 HR22 1800-830 ETDD 03

Manufacturer

HAN6357151

GTIN4018242312665

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Outer diameter150 mm

Rated luminous flux according to IEC 62722-2-11700lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth100 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth103 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy106lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1700lm

Light intensity1129 cd

Light distributorReflector

Light distributionSymmetrical

Max. system performance16W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles5

ReflectorHigh gloss

Impact resistanceIK06

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialWithout

Housing materialAluminum
