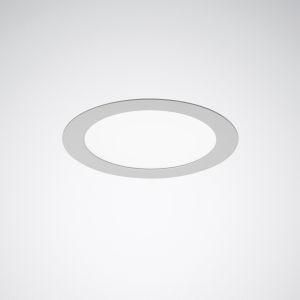

Trilux 6865040 Aviella C07 OA 2000-830 ET 01 LED recessed ceiling spotlight LB21, white

Trilux 6865040 Aviella C07 OA 2000-830 ET 01 LED recessed ceiling spotlight LB21, white

In stock

SKU: 851098

Price on request

€65.37

€0

Overview

Round LED recessed downlight. Tool-free ceiling installation using quick-mounting springs. Ceiling cutout Ø 228 mm, installation depth 45 mm. With opal PMMA cover panel. With symmetrical, wide-beam light distribution. Rated luminous flux 1800 lm, rated power 24.00 W, luminaire luminous efficacy 75 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 4 SDCM, average rated service life L80 (tq 25 °C) = 35,000 h, average rated service life L70 (tq 25 °C) = 50,000 h. Luminaire body made of die-cast aluminum. Ceiling ring powder-coated white (RAL 9016). External dimensions of ceiling ring Ø 240 mm, luminaire height 24 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20, protection type on the room side: IP44, shock resistance level according to IEC 62262: IK05, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 0.6 kg. With external control gear, switchable. The luminaire is suitable for operation on a 230 V direct current network (DC). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	24 W
Rated luminous flux according to IEC 62722-2-1:	1800 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	240 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	45 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	24 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Beam angle:	free beam/diffuse
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	electronic transformer
Impact resistance:	IK05
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	1800 lm
Cover material:	opal plastic
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depends on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	yes
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Total harmonic distortion (THD):	14
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Luminous intensity:	564 cd
Type of wiring:	Termination
Power factor:	0.9
Number of poles:	2
Connection type:	Plug-in terminal
Luminous efficacy:	75 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Colour consistency (McAdam ellipse):	SDCM4

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Total harmonic distortion (THD)14

HABAviella C07 OA 2000-830 ET 01

Manufacturer

HAN6865040

GTIN4018242369546

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleFree-radiating/diffuse

Outer diameter240 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11800lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth45 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth24 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy75lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1800lm

Light intensity564 cd

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance24W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

ReflectorWithout

Impact resistanceIK05

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
