Trilux 7571051 Aviella C09 OA 2600-840 ETDD 01 LED recessed ceiling spotlight, white

Trilux 7571051 Aviella C09 OA 2600-840 ETDD 01 LED recessed ceiling spotlight, white

In stock

SKU: 857141

Price on request

€104.13

€0

Overview

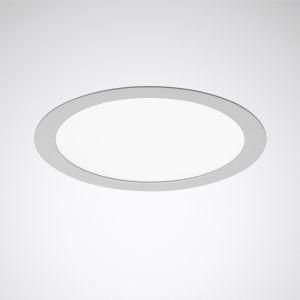

Round LED recessed downlight. Tool-free ceiling installation using quick-mounting springs. Ceiling cutout Ø 280 mm, installation depth 30 mm. With opal PMMA cover panel. With symmetrical, wide-beam light distribution. Rated luminous flux 2750 lm, rated power 30.00 W, luminaire luminous efficacy 91 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 4 SDCM, average rated service life L80 (tq 25 °C) = 35,000 h, average rated service life L70 (tq 25 °C) = 50,000 h. Luminaire body made of die-cast aluminum. Ceiling ring powder-coated white (RAL 9016). External dimensions of ceiling ring Ø 300 mm, luminaire height 30 mm. Permissible ambient temperature (ta): - +25 °C. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20, protection type on the room side: IP44, shock resistance level according to IEC 62262: IK05, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 0.9 kg. With external control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The luminaire is suitable for operation on a 230V direct current network (DC). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

d>no

Property	Value
Max. System power:	30 W
Rated luminous flux according to IEC 62722-2-1:	2750 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	300 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	30 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	30 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Beam angle:	free beam/diffuse
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	electronic transformer
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	2750 lm
Cover material:	opal plastic
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Total harmonic distortion (THD):	14
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Type of wiring:	Termination
Power factor:	0.95
Number of poles:	4
Connectable conductor cross-section:	1 to 1.5 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	92 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Total harmonic distortion (THD)14

Connectable conductor cross-section1 to 1.5 mm²

HABAviella C09 OA 2600-840 ETDD 01

Manufacturer

HAN7571051

GTIN4018242560301

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleFree-radiating/diffuse

Outer diameter300 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12750lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth30 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth30 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy92lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2750lm

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance30W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles4

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
