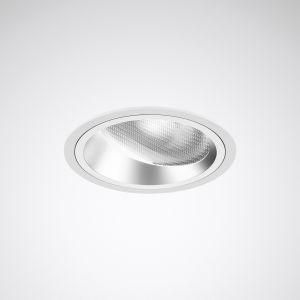

Trilux 9002016521 SNS RC5 MRW 20-940 ETDD 01 LED recessed ceiling spotlight, white

Trilux 9002016521 SNS RC5 MRW 20-940 ETDD 01 LED recessed ceiling spotlight, white

In stock

SKU: 858299

Price on request

€313.38

€0

Overview

Compact LED downlight in a round design. Recessed downlight with edge for sawn ceiling openings. Tool-free ceiling installation using quick-assembly clamps. Ceiling cut-out dimensions Ø 150 mm. Renovation panels for installation in existing ceiling openings with unsuitable dimensions are available as accessories that must be ordered separately. Installation depth >= 130 mm, luminaire height 133 mm. With matt, glossy vapor-coated plastic reflector. Color of the ceiling installation frame: white. Symmetrical light distribution characteristics and half-value angle: wallwasher. Wallwasher with asymmetrical light intensity distribution. Light control using a collimator and a light-directing prism panel. With one LED module. Luminaire luminous flux 2,000 lm, connected load 23 W, luminaire luminous efficacy 91 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra = 90. Color tolerance (initial MacAdam) 3 SDCM corresponds to a very high color uniformity of the LED in the application. Average service life L90 (tq 25 °C) = 50,000 h, average service life L80 (tq 25 °C) = 70,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Permissible ambient temperature (ta): -20 ° C - + 25 ° C. Housing and heat sink made of die-cast aluminum. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20. Protection type on the room side: IP44. Shock resistance level according to IEC 62262: IK02/0.2 J, test temperature glow wire test according to IEC 60695-2-11: 850 °C. With 5-pin connection terminal up to 2.5 mm² for mains connection and separate 5-pin mains forwarding box. The mains-side connection of the ballast is made using a connection terminal. With electronic ballast, digitally dimmable (DALI). Operating device according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). Possible dimming range: 1...100%. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Live-Link ready. The luminaire is silicone-free. The luminaire meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

< td>no

Property	Value
Max. System power:	23 W
Rated luminous flux according to IEC 62722-2-1:	2100 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	165 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	130 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	132.5 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Beam angle:	medium beam 21-40°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	asymmetrical
Operating device:	electronic transformer
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	matt
Suitable for number of bulbs:	1
Luminous flux:	2100 lm
Cover material:	other
Covering of the luminaire with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on the operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	yes
Dimming Zigbee:
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Focus lens
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Total harmonic distortion (THD):	14
Rated service life L70/B50 at 25 °C:	70000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	Termination
Power factor:	0.95
Number of poles:	5
Connectable conductor cross-section:	2.5 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	91 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	SDCM3

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Total harmonic distortion (THD)14

Connectable conductor cross-section2.5 mm²

HABSNS RC5 MRW 20-940 ETDD 01

Manufacturer

HAN9002016521

GTIN4018242581559

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleMedium beam 21-40°

Outer diameter165 mm

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-12100lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth130 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI90-100

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth132.5 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy91lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2100lm

Light distributorFocus lens

Light distributionAsymmetrical

Max. system performance23W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles5

ReflectorFrosted

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityRotatable

Cover materialOther

Housing materialAluminum
