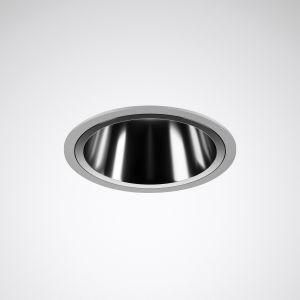

Trilux 9002065157 SNS RC5 HRXFL-22 20-830 ET EB3 03 LED recessed ceiling spotlight, silver

Trilux 9002065157 SNS RC5 HRXFL-22 20-830 ET EB3 03 LED recessed ceiling spotlight, silver

In stock

SKU: 857598

Price on request

€418.75

€0

Overview

Compact LED downlight in a round design. Recessed downlight with edge for sawn ceiling openings. Tool-free ceiling installation using quick-assembly clamps. Ceiling cut-out dimensions Ø 150 mm. Renovation panels for installation in existing ceiling openings with unsuitable dimensions are available as accessories that must be ordered separately. Installation depth >= 130 mm, luminaire height 133 mm. With high-gloss vapor-coated plastic reflector. Color of the ceiling installation frame: silver. Symmetrical light distribution characteristics and half-value angle: 80° Extreme Wide Flood. Light control through diffuser/reflector. Limitation of direct glare in accordance with UGR 22. With one LED module. Luminaire luminous flux 2,000 lm, connected load 21 W, luminaire luminous efficacy 100 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra = 80. Color tolerance (initial MacAdam) 3 SDCM corresponds to a very high color uniformity of the LED in the application. Average service life L90 (tq 25 °C) = 50,000 h, average service life L80 (tq 25 °C) = 70,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Permissible ambient temperature (ta): -20 ° C - + 25 ° C. Housing and heat sink made of die-cast aluminum. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20. Protection type on the room side: IP54. Shock resistance level according to IEC 62262: IK02/0.2 J, test temperature glow wire test according to IEC 60695-2-11: 850 °C. With 3-pin connection terminal up to 2.5 mm² for mains connection and separate 3-pin mains forwarding box. With electronic control gear, switchable. The mains-side connection of the ballast is made using a connection terminal. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). In emergency light version with single battery system, nominal operating time 3 hours. The luminaire is silicone-free. The luminaire meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. ENEC validation by an independent testing body is in preparation.

Property	Value
Max. System power:	21 W
Rated luminous flux according to IEC 62722-2-1:	2100 lm
Housing color:	Silver
Housing material:	Aluminum
Protection class (IP):	IP20
Outer diameter:	165 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	130 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	132.5 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	electronic transformer
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Suitable for number of bulbs:	1
Luminous flux:	2100 lm
Cover material:	other
Covering of the luminaire with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Total harmonic distortion (THD):	14
Rated service life L70/B50 at 25 °C:	70000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	Termination
Power factor:	0.95
Number of poles:	3
Connectable conductor cross-section:	2.5 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	100 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	SDCM3

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Total harmonic distortion (THD)14

Connectable conductor cross-section2.5 mm²

HABSNS RC5 HRXFL-22 20-830 ET EB3 03

Manufacturer

HAN9002065157

GTIN4018242582976

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Outer diameter165 mm

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-12100lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth130 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth132.5 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy100lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2100lm

Light distributorFocus lens

Light distributionSymmetrical

Max. system performance21 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorHigh gloss

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityRotatable

Cover materialOther

Housing materialAluminum
