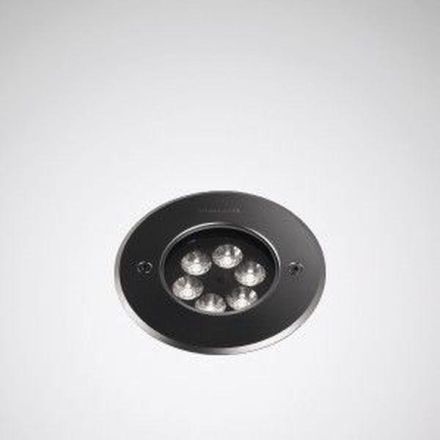

Trilux 6490140 8511 RBS3L/500-red 1G1 ET LED recessed floor spotlight

LED recessed floor spotlight for accent lighting, can be walked on and driven over. For installation in the floor. LED system can be swivelled +/- 10°. With rotationally symmetrical, wide beam light distribution. Beam angle 50°. LED system equipped with 6 LEDs. Rated luminous flux 500 lm, rated power 11.00 W, luminaire luminous efficacy 45 lm/W. Light colour red. Colour tolerance (initial MacAdam) 3 SDCM. Other LED light colours available on request. Average rated service life L80(tq 25 °C) = 50,000 h. Spotlight housing and cover ring made of die-cast aluminium, colour jet black, similar to RAL 9005, powder-coated. (RAL 9005). Cover plate made of 15 mm thick, clear, tempered glass. Static load capacity up to 1500 kg. Can be rolled over up to 2500 kg. End ring permanently attached with locking screws and threaded inserts made of stainless steel. Floor-mounted pot made of weather-resistant PVC pipe. With luminaire fastening ring made of glass fiber reinforced PA6. Protection class (EN 61140): II, protection type (DIN EN 60529): IP68, shock resistance level according to IEC 62262: IK10. Weight: 1.3 kg. Wired ready for connection. With external connection cable, 2 x 1.5 mm2, sealed in accordance with protection type. Internal connection compartment sealed with epoxy resin. With electronic control gear, switchable. The luminaire is suitable for operation on a 230V direct current network (DC). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.
