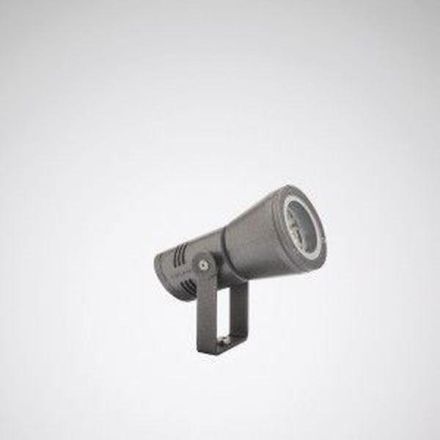

Trilux 6493240 Faciella 08 RE1L/120-blue 1G1 ET LED spotlight, anthracite

Trilux 6493240 Faciella 08 RE1L/120-blue 1G1 ET LED spotlight, anthracite

In stock

SKU: 849373

Price on request

€341.16

€0

Overview

Compact spotlight for accent lighting. The luminaire is part of a series with variants that cover different lighting requirements with the same luminaire design. For direct mounting on a solid surface. With ground spike (accessory) suitable for fastening in the ground. Mast fastening using stainless steel mast clamp (accessory). Clamping range Ø 40-130 mm. With rotationally symmetrical, deep beam light distribution. Maximum light intensity at beam angle 2 x 3°. With LED lens system. Number of LEDs: 3. Rated luminous flux 120 lm, rated power 6.00 W, luminaire luminous efficacy 20 lm/W. Light color blue. Color location tolerance (initial MacAdam) 4 SDCM. Other LED light colors available on request. Average rated service life L80(tq 35 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Spotlight housing made of die-cast aluminum. Color of the lamp body: anthracite, similar to DB 703 with a metallic effect, powder-coated, highly weather-resistant. (DB 703). The lamp body can be made in the following colors on request at no extra cost: textured black (Akzo Nobel 8118669, similar to RAL 9005), textured white (Akzo Nobel 8158870, similar to RAL 9016), textured gray (Akzo Nobel 8129595, similar to RAL 9006). Other color variants according to RAL or DB color code are available on request for an additional charge. Rotatable and pivotable, pivot range 195°, pivot range 360°. With flat cover plate, extra-clear, 4 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, protection type lamp compartment: IP65, shock resistance degree according to IEC 62262: IK06. Weight: 0.8 kg. Equipped at the factory with a 5000 mm connection cable. Cable entries for connection cables Pg9, Ø 5.5 mm - 10 mm. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

Property	Value
Max. System power:	6 W
Rated luminous flux according to IEC 62722-2-1:	120 lm
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP65
Outer diameter:	80 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	160 mm
With motion detector:	no
Color temperature:	2700 to 6500 K
Nominal voltage:	230 V
Beam angle:	narrow beam 11-20°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	electronic transformer
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	120 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	other
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	yes
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for Rope system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Light emission:	direct
Energy efficiency class of the built-in light source:	other
Total harmonic distortion (THD):	10
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Luminous intensity:	3486 cd
Type of Wiring:	Termination
Power factor:	0.9
Number of poles:	3
Connection type:	other
Luminous efficacy:	20 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG2
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Total harmonic distortion (THD)10

HABFaciella 08 RE1L/120-blue 1G1 ET

Manufacturer

HAN6493240

GTIN4018242329625

Covering the luminaire with thermal insulation material possibleYes

Connection typeOther

Type of wiringDiploma

Beam angleNarrow beam 11-20°

Outer diameter80 mm

Rated luminous flux according to IEC 62722-2-1120lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM4

Color temperature2700 to 6500 K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Power factor0.9

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy20lm/W

LampsLED not replaceable

Light emissionDirect

Light colorOther

Luminous flux120lm

Light intensity3486 cd

Light distributorFocus lens

Light distributionSymmetrical

Length160 mm

Max. system performance6W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG2

Number of poles3

ReflectorOther

Impact resistanceIK06

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
