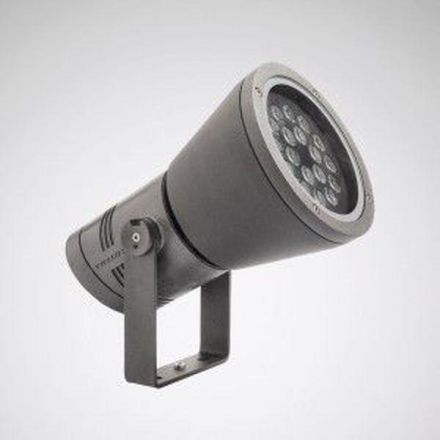

LED compact spotlight for accent lighting. The luminaire is part of a series with variants that cover different lighting requirements with the same luminaire design. For direct mounting on a solid surface. With ground spike (accessory) suitable for fastening in the ground. Mast fastening using a stainless steel mast clamp (accessory). Clamping range Ø 40-130 mm. With LED lens system. Number of LEDs: 18. Rated luminous flux 900 lm, rated power 52.00 W, luminaire luminous efficacy 17 lm/W. Light color blue. Color location tolerance (initial MacAdam) 4 SDCM. Other LED light colors available on request. Average rated service life L80(tq 35 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Spotlight housing made of die-cast aluminum. Color of lamp body: anthracite, similar to DB 703 with metal effect, powder-coated, highly weatherproof. (DB 703). The lamp body can be made in the following colors on request at no extra cost: Black textured (Akzo Nobel 8118669, similar to RAL 9005), White textured (Akzo Nobel 8158870, similar to RAL 9016), Gray textured (Akzo Nobel 8129595, similar to RAL 9006). Other color variants according to RAL or DB color code are available on request for an additional charge. Rotatable and pivotable, pivot range 195°, pivot range 360°. With flat cover plate, extra clear, 5 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, protection type lamp compartment: IP65, shock resistance level according to IEC 62262: IK06. Weight: 6.1 kg. Equipped at the factory with a 5000 mm connection cable. Cable entries for connection cables Pg13, Ø 5 mm - 12 mm. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 52 W |
| Rated luminous flux according to IEC 62722-2-1: | 900 lm |
| Housing color: | anthracite |
| Housing material: | aluminum |
| Protection class (IP): | other |
| Outer diameter: | 200 mm |
| Socket: | other |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| With operating device: | yes |
| Suitable for recessed mounting: | no |
| Length: | 320 mm |
| With motion detector: | no |
| Color temperature: | 2700 to 6500 K |
| Nominal voltage: | 230 V |
| Beam angle: | narrow beam 11-20° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | electronic transformer |
| Impact resistance: | IK06 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | other |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 900 lm |
| Cover material: | transparent glass |
| Covering of the lamp with thermal insulation material possible: | yes |
| Voltage type: | AC |
| Light color: | other |
| Suitable for track mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for podium/floor mounting: | yes |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for Rope system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Dimming Phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Focus lens |
| Light emission: | direct |
| Energy efficiency class of the built-in light source: | other |
| Total harmonic distortion (THD): | 10 |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Luminous intensity: | 46466 cd |
| Type of Wiring: | Termination |
| Power factor: | 0.95 |
| Number of poles: | 3 |
| Connection type: | other |
| Luminous efficacy: | 17 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Glow wire test in accordance with IEC 60695-2-11: | 850 °C - 30 s |
| Photobiological safety in accordance with EN 62471: | RG0 |
| Color consistency (McAdam ellipse): | SDCM4 |
