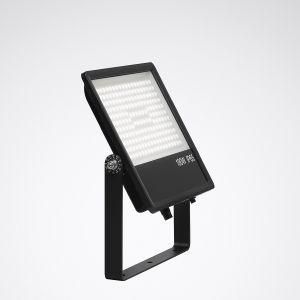

Trilux 7631240 2390 AM9R/20000-730 1G1W ET LED spotlight

Trilux 7631240 2390 AM9R/20000-730 1G1W ET LED spotlight

In stock

SKU: 857197

Price on request

€215.17

€0

Overview

LED floodlight for area lighting and spotlighting. As an optional accessory, a motion sensor / brightness sensor can be combined with the spotlight without tools. Pivoting bracket for hanging and standing installation. Recommended installation height for mast mounting: approx. 12 - 14 m. Optical system composed of a PC lens optic. Cover of the light exit opening made of clear toughened safety glass. With asymmetrical medium-wide light distribution. Rated luminous flux 20,000 lm, rated power 180.00 W, luminaire luminous efficacy 111 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) 5 SDCM. Average rated service life L65(tq 25 °C) = 50,000 h. Spotlight housing made of die-cast aluminum. Color black, similar to RAL 9005, powder-coated, highly weatherproof. (RAL 9005). Dimensions (L x W): 320 mm x 345 mm, lamp height 50 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, impact resistance level according to IEC 62262: IK08. Wind attack area fw . Weight: 5.2 kg. The lamp is connected without opening the lamp body using the connecting cable (800 mm) that runs outwards. With electronic ballast, switchable. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	180 W
Rated luminous flux according to IEC 62722-2-1:	20000 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP65
Socket:	other
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	320 mm
Width:	345 mm
Height/depth:	50 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Beam angle:	medium beam 21-40°
Color rendering index CRI:	70-79
Suitable for ceiling mounting:	yes
Light distribution:	asymmetrical
Operating device:	electronic transformer
Impact resistance:	IK08
Luminaire with limited Surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	20000 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	yes
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depends on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	yes
Light distributor:	Focus lens
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Total harmonic distortion (THD):	10
Rated service life L70/B50 at 25 °C:	35000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	50 °C
Type of wiring:	Termination
Power factor:	0.9
Number of poles:	3
Connectable conductor cross-section:	2 to 2.5 mm²
Connection type:	other
Luminous efficacy:	111 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM5

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Total harmonic distortion (THD)10

Connectable conductor cross-section2 to 2.5 mm²

HAB2390 AM9R/20000-730 1G1W ET

Manufacturer

HAN7631240

GTIN4018242561438

Covering the luminaire with thermal insulation material possibleYes

Connection typeOther

Type of wiringDiploma

Beam angleMedium beam 21-40°

Rated lifetime L70/B50 at 25 °C35000 hours

Rated luminous flux according to IEC 62722-2-120000lm

Rated ambient temperature according to IEC62722-2-150°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width345 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM5

Color temperature3000K

Color rendering index CRI70-79

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingYes

Housing colorBlack

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth50 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy111lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux20000lm

Light distributorFocus lens

Light distributionAsymmetrical

Length320 mm

Max. system performance180W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorWithout

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
