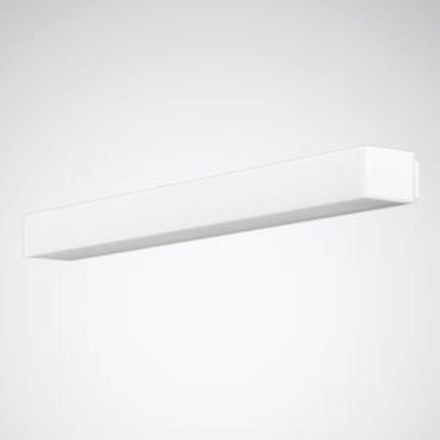

Trilux 7933662 AcuroAct LED2000 ETDD8 01 LED diffuser light

LED surface-mounted luminaires for ceiling and wall mounting. Luminaire with Active equipment for controlling the light color using a separate control unit. For horizontal or vertical mounting. With PMMA cover, opal. Finely structured surface. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 25. The following information on the luminaire luminous flux and the system connected load refers to the operation of this luminaire with dynamically adjustable light color (HCL) in warm white light color operating mode (2700 K). Rated luminous flux 2000 lm, rated power 15.00 W, luminaire luminous efficacy 133 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. Luminaire body made of extruded aluminum. With cable duct integrated on the rear for cable routing with longitudinally offset wall outlet. Surface coated in white (RAL 9016). Dimensions (L x W): 1200 mm x 54 mm, luminaire height 85 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class for wall mounting IP44, protection class for ceiling mounting IP40. Protection class (EN 61140): I, Shock resistance level according to IEC 62262: , Test temperature glow wire test according to IEC 60695-2-11: . Weight: 3.2 kg. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8 capable control unit. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
