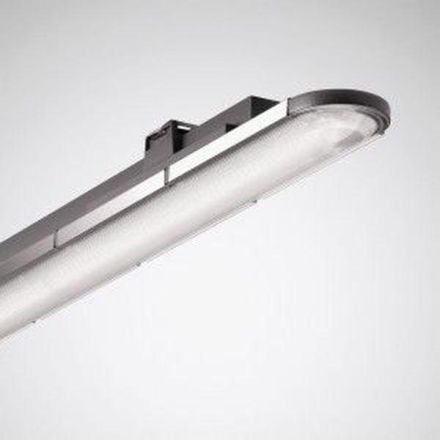

Trilux 6633651 Nextrema G3 XB 6000 840 ETDD +HFSX LV PC LED waterproof luminaire, anthracite

LED damp-proof luminaire. With through-wiring 5 x 1.5 mm2. Quick-connect system type Wieland. Surface-mounted luminaire for damp rooms and covered outdoor areas. Complies with DIN 10500. The luminaires are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D identification). For ceiling, wall and suspended mounting. Mounting clips and triangular brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ mounting rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (eg ATL1). Optical system consisting of primary optics with PC diffuser. With symmetrical, extremely wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 5900 lm, rated power 39.00 W, luminaire luminous efficacy 151 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Color of luminaire body anthracite, (DB 703). Dimensions (L x W): 1047 mm x 96 mm, lamp height 98 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 3.7 kg. Connection devices on both ends designed as a socket or plug. Matching connection socket and plug included in delivery. The electrical connection is made without tools. The strain relief of the connection cable is provided by means of the M25 screw connection of the quick connection plug. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The lamp is suitable for operation on a 230V direct current network (DC). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. With integrated HF motion sensor. Sensor type HFSX for controlling a group of up to 14 standard DALI luminaires connected to the DALI output. The lighting group can be expanded to a total of up to 300 luminaires by combining it with up to 19 additional master luminaires sensor type HFSX. Shape of the detection area is elliptical, length of the detection area up to 12 meters, width of the detection area up to 8 m. The luminaire is started up using a remote control that must be ordered separately (LMS HFSB/X RMC 6487800). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body.
