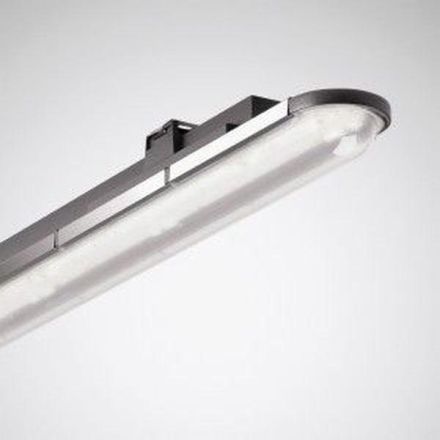

Trilux 6633840 Nextrema G3 TB 6000 840 ET +LV LED waterproof luminaire, anthracite

LED damp-proof luminaire. With through-wiring 3 x 1.5 mm2. Quick-connect system type Wieland. Luminaire in PMMA design suitable for use in uncovered outdoor areas due to its higher UV resistance. Complies with DIN 10500. The luminaires are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D identification). For ceiling, wall and suspended mounting. Mounting clips and triangle brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ mounting rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (e.g. ATL1). Optical system consisting of primary optics with PMMA diffuser. With symmetrical deep-wide light distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 6400 lm, rated power 39.00 W, luminaire luminous efficacy 164 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Color of lamp body: anthracite (DB 703). Dimensions (L x W): 1047 mm x 96 mm, lamp height 112 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK04, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.2 kg. Connection devices on both ends designed as a socket or plug. Matching connection socket and plug included in delivery. The electrical connection is made without tools. The strain relief of the connection cable is provided by means of the M25 screw connection of the quick-connection plug. With electronic control gear, switchable. The luminaire is suitable for operation on a 230V direct current network (DC). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
