Trilux 7376640 2345 WD1 20/14/10/ML-840 ET IP65 LED waterproof luminaire

Trilux 7376640 2345 WD1 20/14/10/ML-840 ET IP65 LED waterproof luminaire

In stock

SKU: 853413

Price on request

€97.75

€0

Overview

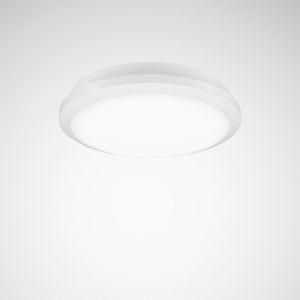

Round LED damp-room surface-mounted luminaire. For wall or ceiling mounting. With opal PC cover, impact-resistant. With Lambertian light distribution. Glare rating according to UGR classification (EN 12464-1) < 22. Luminaire luminous flux adjustable in 3 stages. Minimum luminaire luminous flux 800 lm, rated power 9.00 W. Maximum luminaire luminous flux 2200 lm, rated power 19.00 W. Luminaire luminous efficacy 88 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 5 SDCM, average rated service life L65(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Lamp body made of plastic, white (RAL 9016). Diameter of the cover Ø 300 mm, lamp height 85 mm. Protection class (EN 61140): II, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK10, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 0.9 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Control gear in multi-lumen version, luminous flux setting in delivery state: 2000 lm. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	2200 lm
Suitable for number of lamps:	1
Height/depth:	85 mm
Protection rating (IP):	IP65
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	300 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	opal plastic
Light distributor:	diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for built-in installation:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Dimming depending on the operating device:	no
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	116 lm/W
Power factor:	0.5
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	1.5 mm²

Characteristics

HAB2345 WD1 20/14/10/ML-840 ET IP65

Manufacturer

HAN7376640

GTIN4018242509577

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Outer diameter300 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12200lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth85 mm

Power factor0.5

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy116lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance19 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

Impact resistanceIK10

IP protection)IP65

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialPlastic
