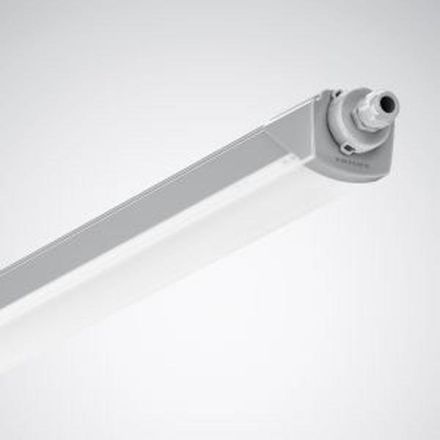

Trilux 7541151 Deveo Fit 1500 4000-840 ETDD PC LED waterproof luminaire

In stock
SKU: 863498
€115.36
Into a basketIn the basketGo

Overview

Surface-mounted luminaire for damp rooms and covered outdoor areas. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D identification). For ceiling, wall and suspended mounting. Wall mounting can be horizontal or vertical. Theft-proof mounting possible using an anti-theft device that must be ordered separately. Mounting clips and triangular brackets for suspended mounting included in delivery. Mounting clips can be moved. With opal PC cover. Rated luminous flux 4000 lm, rated power 32.00 W, luminous efficacy 125 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. Luminaire body made of a one-piece PC extrusion profile. PC end caps with UV protection. Color light gray (RAL 7035). Dimensions (L x W): 1493 mm x 76 mm, luminaire height 67 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK10, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 2.0 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire is suitable for operation on a 230V direct current network (DC). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.

Property Value
Max. System power: 32 W
Rated luminous flux according to IEC 62722-2-1: 4000 lm
Suitable for number of lamps: 1
Length: 1493 mm
Width: 76 mm
Height/depth: 67 mm
Protection rating (IP): IP66
Protection class: I
Luminaire with limited surface temperature 'D-mark': yes
Nominal voltage: 220 to 240 V
Housing color: gray
Housing material: plastic
Color temperature: 4000 K
Impact resistance: IK10
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Suitable for wall mounting: yes
Energy efficiency class of the permanently installed light source: other
Voltage type: AC/DC
With motion detector: no
Beam angle: free beam/diffuse
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: 35 °C
Socket: other
Connection type: Plug-in terminal
With control gear: yes
Cover material: Opal plastic
Light distributor: Diffuser lens/optics/panel
Without dimming function: no
Light emission: direct/indirect
Light distribution: symmetrical
With light sensor: no
Operating device: electronic transformer
Suitable for recessed mounting: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for pendant suspension: yes
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: without
Covering of the luminaire with thermal insulation material possible: no
DMX dimming: no
DSI dimming: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: yes
Dimming mains voltage modulation: no
Dimming phase cut: no
Dimming phase leading edge: no
Dimming programmable: yes
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: yes
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on operating device: yes
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 850 °C - 30 s
Luminaire luminous efficacy: 125 lm/W
Power factor: 0.95
Type of wiring: Termination
Number of poles: 5

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABDeveo Fit 1500 4000-840 ETDD PC
ManufacturerTrilux
HAN7541151
GTIN4018242524969
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated luminous flux according to IEC 62722-2-14000lm
Rated ambient temperature according to IEC62722-2-135°C
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1No
Width76 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimYes
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableYes
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Suitable for wall mountingYes
Housing colorGray
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth67 mm
Power factor0.95
Luminaire with limited surface temperature D-markYes
Luminaire luminous efficacy125lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Length1493 mm
Max. system performance32W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionNo
Number of poles5
Impact resistanceIK10
IP protection)IP66
Protection class (NEMA)Other
Protection classI
Voltage typeAC/DC
Cover materialPlastic opal
Housing materialPlastic
