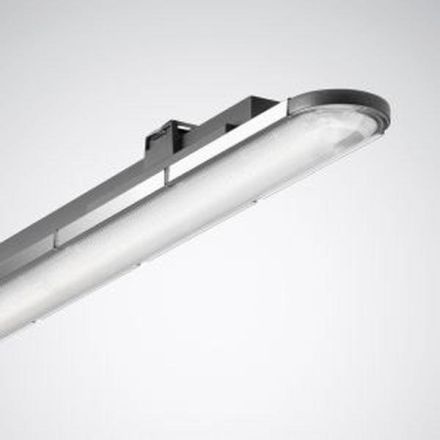

Trilux 7585240 Nextrema G3 HE B 60-840 ET TWP PC LED waterproof luminaire, anthracite

Highly efficient LED damp-proof luminaire with a wide temperature range. Phoenix type quick-connect system. Surface-mounted luminaire for damp rooms and covered outdoor areas. Complies with DIN 10500. The luminaires are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D identification). For ceiling, wall and suspended mounting. Mounting clips and triangular brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ support rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (e.g. ATL1). PC diffuser with internal prism structure. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 5900 lm, rated power 38.00 W, luminaire luminous efficacy 155 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 50 °C) = 100,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Luminaire body color anthracite, (DB 703). Dimensions (L x W): 1047 mm x 96 mm, luminaire height 98 mm. Permissible ambient temperature (ta): -40 °C - +50 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 2.9 kg. With front-mounted connection plug type Phoenix. The electrical connection is made without tools. The strain relief of the connection cable is provided by means of the M25 screw connection of the quick-connection plug. With electronic control gear, switchable. The light is suitable for operation on a 230V direct current network (DC). Surge voltage resistance: 4kV (Class III, DIN EN 60664-1). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body.
