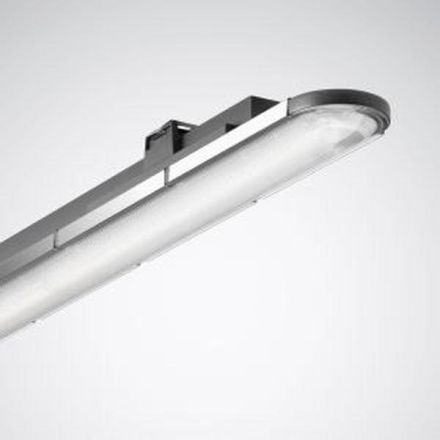

Trilux 7585451 Nextrema G3 HE B 40-840 ETDD +LV TWP LED waterproof luminaire, anthracite

Highly efficient LED damp-proof luminaire with a wide temperature range. With through-wiring 5 x 1.5 mm2. Phoenix type quick-connect system. Luminaire in PMMA design suitable for use in uncovered outdoor areas due to its higher UV resistance. Complies with DIN 10500. The luminaires are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D identification). For ceiling, wall and suspended mounting. Mounting clips and triangle brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ mounting rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (e.g. ATL1). PMMA diffuser with internal prism structure. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 4500 lm, rated power 27.00 W, luminaire luminous efficacy 166 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 50 °C) = 100,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Color of luminaire body anthracite, (DB 703). Dimensions (L x W): 1047 mm x 96 mm, luminaire height 98 mm. Permissible ambient temperature (ta): -40 °C - +50 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK04, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.1 kg. Connection devices on both ends designed as a socket or plug. Matching connection socket and plug included in delivery. The electrical connection is made without tools. The strain relief of the connection cable is provided by means of the M25 screw connection of the quick connection plug. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The luminaire is suitable for operation on a 230V direct current network (DC). Surge voltage resistance: 4kV (Class III, DIN EN 60664-1). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body.
