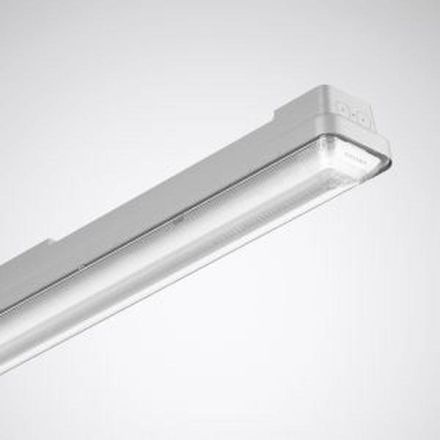

Trilux 7598440 AragFHE 15 PW 44-840 ET+HFS PC LED damp-proof luminaire, grey

LED damp-proof luminaire IP 66 for use in applications with high demands on variability, efficiency, light quality and technology. The luminaire is part of a range with identical, technically compatible variants. These variants are available with alternative optical systems, light engines with adjustable luminous fluxes and with connection options to light management and emergency lighting systems. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. Suspended installation possible using optional accessories. Ceiling mounting using the enclosed stainless steel fastening clip. Suspended installation possible using optional accessories. With a prismatic, photometrically effective, translucent PC cover, direct beam. With wide beam light distribution. Rated luminous flux 4400 lm, rated power 25.00 W, luminaire luminous efficacy 176 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of PC. Luminaire body color light gray (RAL 7035). Dimensions (L x W): 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 2.8 kg. With electronic control gear, switchable. With integrated HF motion sensor. Shape of the detection area similar to an ellipse. Width of the detection area: 1 - 5 m. Length of the detection area: 0.5 - 5 m. Function parameters of the HF motion sensor can be set using the optional IR remote control available as an accessory. The IR remote control available as an accessory can be used to set the function parameters signal strength, hold time and, in conjunction with luminaires of the ETDD switching type, light value and dimming level. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body.
